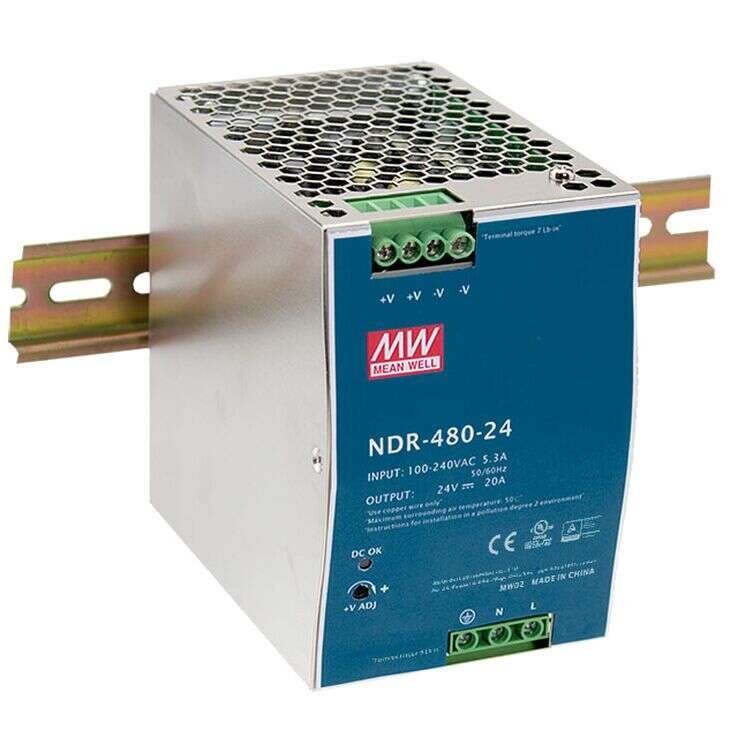

NDR-480 Series
DIN Rail Power Supplies 480W
NDR-480 Series Main Features:
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Models:
Manufacturer:
Type:
Other features:
NDR-480-24 / NDR-480-48
MEAN WELL
DIN Rail Power Supplies
Universal AC input / Full range
Built-in active PFC function
Can be instaled on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
EN61000-6-2 (EN500082-2) Industrial immunity level
100% full load burn-in test
3 years warranty
Quote Request
| NDR-480-24 | NDR-480-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 480W | 480W | ||||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||||
| Output Current | 20A | 10A | ||||||||||||||
| Output Voltage | 24V | 48V | ||||||||||||||
| Output Voltage Option | Single | Single | ||||||||||||||
| DC Output Adjustment | 24~28V | 48~55V | ||||||||||||||
| Dimensions | 85.5*125.2*128.5 | 85.5*125.2*128.5 | ||||||||||||||
| Working Temperature | -30-+70°C | |||||||||||||||
| Satety Standards | Ul508 TUV BS EN/EN62368-1 , approved , , EAC TP TC 004 BSMI CNS14336-1 IS13252(Part1)/IEC60950-1(except for 48V) ; , (meet EN60204-1) | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN550 2 (CISPR 2),BS EN/EN61204-3 Class B,BS EN/ 3 3 EN61000-3-2,-3,EAC TP TC 020,CNS13438 Class B | |||||||||||||||
