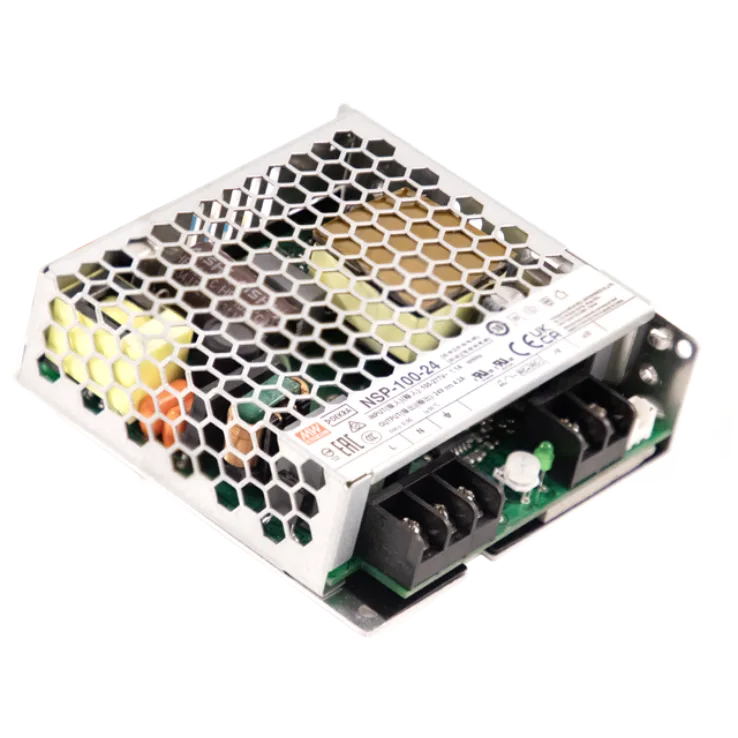

NSP-100 Series
Enclosed Power Supplies 99.9–102W
NSP-100 Series Main Features:
The NSP-100 series is a 100W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.
Models:
Manufacturer:
Type:
Other features:
NSP-100-5 / NSP-100-7.5
NSP-100-12 / NSP-100-15
NSP-100-24 / NSP-100-27
NSP-100-36 / NSP-100-48
NSP-100-60
MEAN WELL
Enclosed Power Supplies
85~305Vac input with PFC (277Vac available)
No load power consumption <0.5W by R.C.
Global certificates in multi-fields
200% peak power capability (12~60V models)
High efficiency up to 92%
Extremely low leakage current<350uA, 2 x
MOPP, suitable for BF medical applications
Protections: short circuit/ Overload/
Over voltage/ Over temperature
5 years warranty
Quote Request
| NSP-100-5 | NSP-100-7.5 | NSP-100-12 | NSP-100-15 | NSP-100-24 | NSP-100-27 | NSP-100-36 | NSP-100-48 | NSP-100-60 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 100 | 100.5 | 102 | 100.5 | 100.8 | 99.9 | 100.8 | 100.8 | 102 | |||||||
| Input Voltage | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | |||||||
| Output Current | 20A | 13.4A | 8.5A | 6.7A | 4.2A | 3.7A | 2.8A | 2.1A | 1.7A | |||||||
| Output Voltage | 5V | 7.5V | 12V | 15V | 24V | 27V | 36V | 48V | 60V | |||||||
| Dimensions(mm) | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | |||||||
| Working Temperature | -40~85°C | |||||||||||||||
