Home / AC-DC Enclosed Type / NSP-150

NSP-150 Series

Enclosed Power Supplies 150–153W

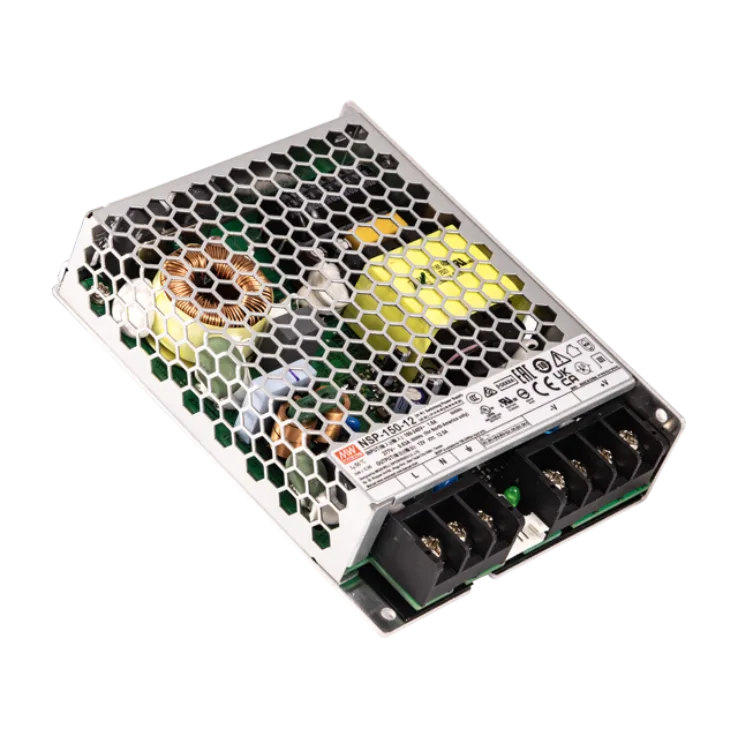

NSP-150

NSP-150 Series Main Features:

The NSP-150 series is a 150W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.

Models:

Manufacturer:

Type:

Other features:

NSP-150-5 / NSP-150-7.5
NSP-150-12 / NSP-150-15
NSP-150-24 / NSP-150-27
NSP-150-36 / NSP-150-48
NSP-150-60

MEAN WELL

Enclosed Power Supplies

85~305Vac input with PFC (277Vac available)

No load power consumption <0.75W by R.C.

Global certificates in multi-fields

200% peak power capability (12~60V models)

High efficiency up to 92.5%

Extremely low leakage current<350uA, 2 x
MOPP, suitable for BF medical applications

Protections: short circuit/ Overload/
Over voltage/ Over temperature

5 years warranty

Quote Request

    NSP-150-5NSP-150-7.5NSP-150-12NSP-150-15NSP-150-24NSP-150-27NSP-150-36NSP-150-48NSP-150-60
    Wattage150150150150151.2151.2151.2151.2153
    Input Voltage80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC    		80-305VAC
    120-431VDC
    Output Current30A20A12.5A10A6.3A5.6A4.2A3.15A2.55A
    Output Voltage5V7.5V12V15V24V27V36V48V60V
    Dimensions(mm)129x97x30129x97x30129x97x30129x97x30129x97x30129x97x30129x97x30129x97x30129x97x30
    Working Temperature-40~85°C
