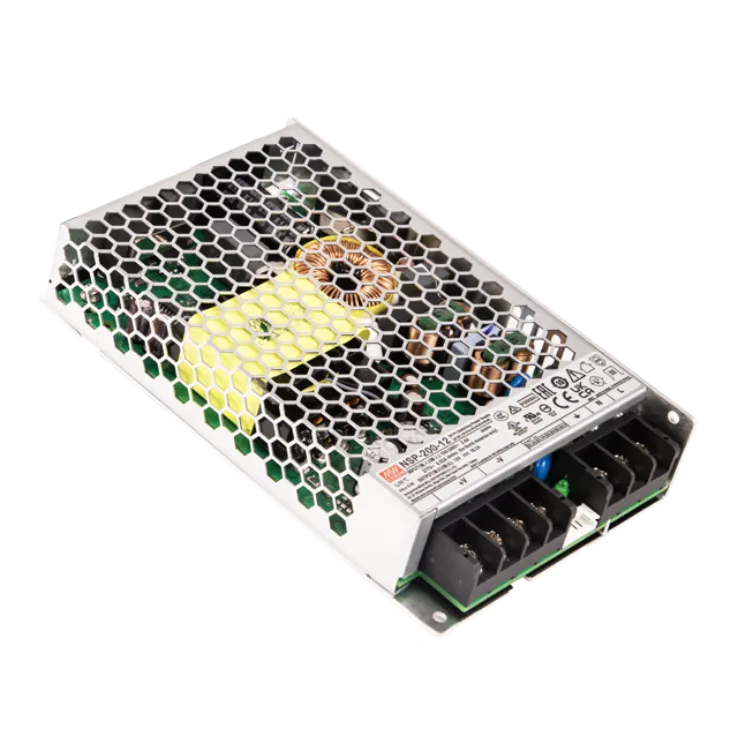

NSP-200 Series

Enclosed Power Supplies 199.8–201.6W

NSP-200

NSP-200 Series Main Features:

The NSP-200 series is a 200W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.

Models:

Manufacturer:

Type:

Other features:

NSP-200-5 / NSP-200-7.5
NSP-200-12 / NSP-200-15
NSP-200-24 / NSP-200-27
NSP-200-36 / NSP-200-48
NSP-200-60

MEAN WELL

Enclosed Power Supplies

85~305Vac input with PFC (277Vac available)

No load power consumption <0.75W by R.C.

Global certificates in multi-fields

200% peak power capability (12~60V models)

High efficiency up to 93%

Extremely low leakage current<350uA, 2 x
MOPP, suitable for BF medical applications

Protections: short circuit/ Overload/
Over voltage/ Over temperature

5 years warranty

Quote Request

    NSP-200-5NSP-200-7.5NSP-200-12NSP-200-15NSP-200-24NSP-200-27NSP-200-36NSP-200-48NSP-200-60
    Wattage200201200.4201201.6199.8201.6201.6201.6
    Input Voltage85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC    		85-305VAC
    120-431VDC
    Output Current40A26.8A16.7A13.4A8.4A7.4A5.6A4.2A3.36A
    Output Voltage57.512152427364860
    Dimensions(mm)159x97x30159x97x30159x97x30159x97x30159x97x30159x97x30159x97x30159x97x30159x97x30
    Working Temperature-40~85°C
