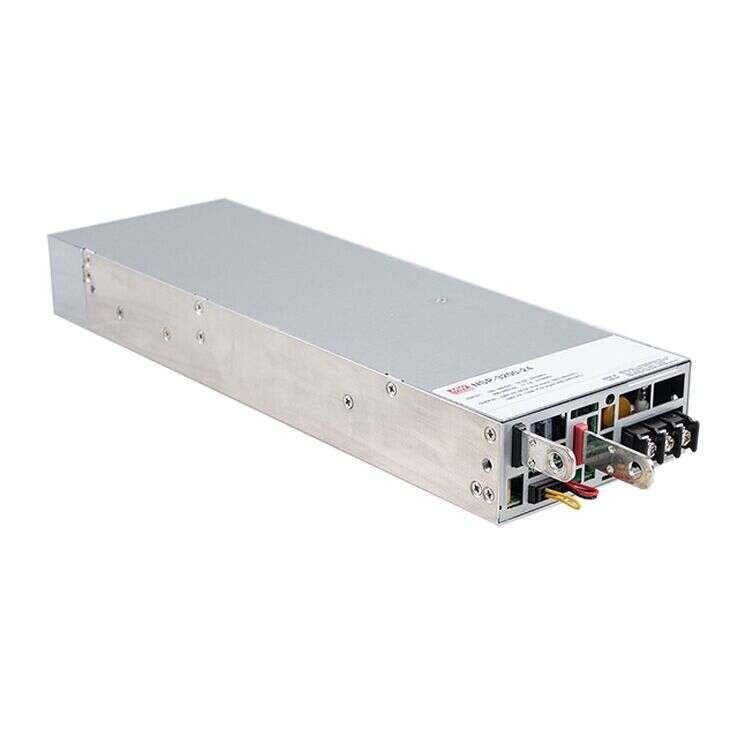

NSP-3200 Series
Enclosed Power Supplies 3192–3216W
NSP-3200 Series Main Features:
NSP-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high power density up to 37W/inch
Models:
Manufacturer:
Type:
Other features:
NSP-3200-24 / NSP-3200-48
MEAN WELL
Enclosed Power Supplies
Universal AC input/full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage level programmable
Protections: short circuit/ overload/
over voltage/ over temperature
Design refer to SEMI F47
Optional conformal coating
5 years warranty
Quote Request
| NSP-3200-24 | NSP-3200-48 | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3192 | 3216 | ||||||||||||||
| Input Voltage | 90-264VAC 127-400VDC | 90-264VAC 127-400VDC | ||||||||||||||
| Output Current | 133A | 67A | ||||||||||||||
| Output Voltage | 24 | 48 | ||||||||||||||
| Dimensions | 325.8x107x41 | 325.8x107x41 | ||||||||||||||
| Working Temperature | -40~85°C | |||||||||||||||
| Satety Standards | UL62368-1, CSA C22.2, No.62368-1, TUV BS EN/EN623681, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-2-6, BS EN/EN61000-4-6, BS EN/EN61000-4-8, BS EN/EN61000-4-11 | |||||||||||||||
