Home / AC-DC Enclosed Type / NSP-75

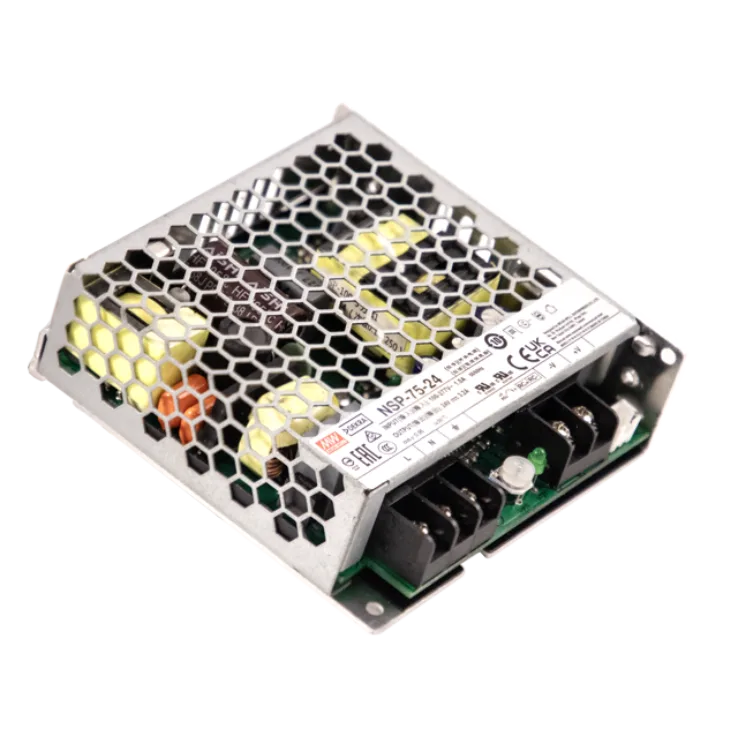

NSP-75 Series
Enclosed Power Supplies 75–78W
NSP-75 Series Main Features:
The NSP-75 series is a 75W AC/DC power supply with PFC function, designed for high reliability and suitable for multiple industries.
Models:
Manufacturer:
Type:
Other features:
NSP-75-5 / NSP-75-7.5
NSP-75-12 / NSP-75-15
NSP-75-24 / NSP-75-27
NSP-75-36 / NSP-75-48
NSP-75-60
MEAN WELL
Enclosed Power Supplies
85~305Vac input with PFC (277Vac available)
No load power consumption <0.5W by R.C.
Global certificates in multi-fields
200% peak power capability (12~60V models)
High efficiency up to 92%
Extremely low leakage current<350uA, 2 x
MOPP, suitable for BF medical applications
Protections: short circuit/ Overload/
Over voltage/ Over temperature
5 years warranty
Quote Request
| NSP-75-5 | NSP-75-12 | NSP-75-15 | NSP-75-24 | NSP-75-27 | NSP-75-36 | NSP-75-48 | NSP-75-60 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75.6 | 75 | 76.8 | 75.6 | 75.6 | 76.8 | 78 | ||||||||
| Input Voltage | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | 80-305VAC 120-431VDC | ||||||||
| Output Current | 15A | 6.3A | 5A | 3.2A | 2.8A | 2.1A | 1.6A | 1.3A | ||||||||
| Output Voltage | 5 | 12 | 15 | 24 | 27 | 36 | 48 | 60 | ||||||||
| Dimensions(mm) | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | 99x97x30 | ||||||||
| Working Temperature | -40~85°C | |||||||||||||||
| Satety Standards | CB DEKRA UL RCM CCC BSMI EAC KC/BIS IEC62368-1, IEC60335-1, IEC61558-1/-2-16, IEC61010-1/-2-201, IEC60601-1; IEC62477-1 BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, BS EN/EN61010-1/-2-201, BS EN/EN60601-1(3.2 Version);BS EN/EN62477-1 UL62368-1, ANSI/AAMI ES60601-1(3.2 Version),UL61010-1/-2-201 AS/NES 62368-1, AS/NES61558-1/-2-16 GB4943.1 CNS15598-1 TP TC 004 approved; KC62368-1 and BIS IS13252 (Part 1): 2010 certified, no stock by request, contact sale for inquires | |||||||||||||||
| EMC Standards | BS EN/EN61000-4-2; BS EN/EN61000-4-3; BS EN/EN61000-4-4; BS EN/EN61000-4-5; BS EN/EN61000-4-6; BS EN/EN61000-4-8; BS EN/EN61000-4-11 | |||||||||||||||
