Home / AC-DC Open Frame Type / PD-25

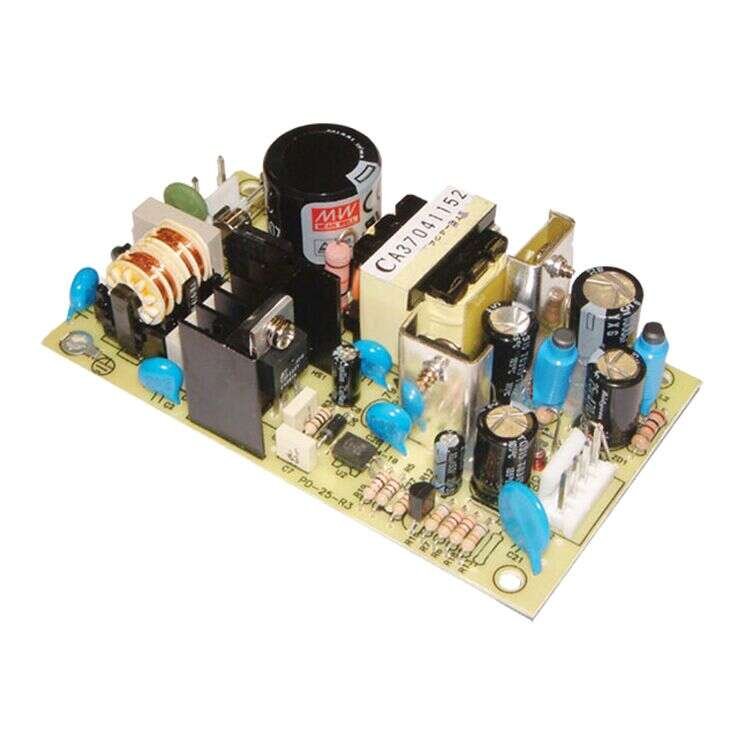

PD-25 Series

Open Frame Power Supplies 25W

PD-25

PD-25 Series Main Features:

Low leakage current <0.5mA

Protections: Short circuit/ Overload/ Over voltage/ Over temperature

Models:

Manufacturer:

Type:

Other features:

PD-25A / PD-25B
PD-2503 / PD-2505
PD-2512 / PD-2515

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

Cooling by free air convection

fixed switching frequency at 67 kHz

100% full load burn-in test

Low cost, high reliability

2 years warranty

Quote Request

    PD-25APD-25BPD-2503PD-2505PD-2512PD-2515
    Wattage252525252525
    Input Voltage85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC
    Output Current0.2~2.5A, 0.1~1.5A0.2~2.0A, 0.1~1.0A0.2~5.0A, 0.1~4.0A0.1~3.0A, 0.1~2.5A0.1~1.2A, 0.1~1.2A0.1~1.0A, 0.1~1.0A
    Output Voltage15V, 12V5V, 24V3.3V, 5V5V, -5V12V, -12V15V, -15V
    Output Voltage OptionsDualDualDualDualDualDual
    Dimensions107x61x28107x61x28107x61x28107x61x28107x61x28107x61x28
    Working Temperature-30~+50°C
    Satety StandardsUL60950-1 CB approval by TUV
    EMC StandardsEN55022 class B, EN61000-3-2, 3, EN61000-4-2, 3, 4, 5, 6, 8, 11
