Home / AC-DC Open Frame Type / PD-45

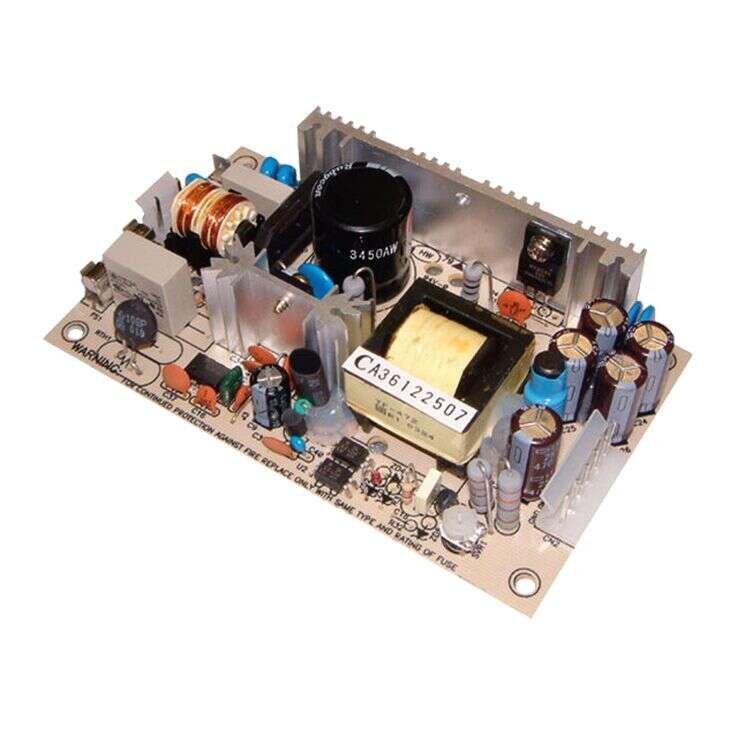

PD-45 Series
Open Frame Power Supplies 45W
PD-45 Series Main Features:
Low leakage current <0.5mA
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
PD-45B / PD-45A
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
Fixed switching frequency at 65kHz
100% full load burn-in test
Low cost, high reliability
3 years warranty
Quote Request
| PD-45B | PD-45A | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 45 | 45 | ||||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||||
| Output Current | 0.4~5.0A, 0.2~1.8A | 0.4~5.0A, 0.2~2.5A | ||||||||||||||
| Output Voltage | 5V, 24V | 5V, 12V | ||||||||||||||
| Output Voltage Options | Dual | Dual | ||||||||||||||
| DC Output Adjustment | 4.75~5.5V | 4.75~5.5V | ||||||||||||||
| Dimensions | 127x76x28 | 127x76x28 | ||||||||||||||
| Working Temperature | -30~+60°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B,EN61000-3-2,-3 , EN61000- 4-2,3,4,5,6,8,11 | |||||||||||||||
