Home / AC-DC Programmable Power Type / PHP-3500-HV

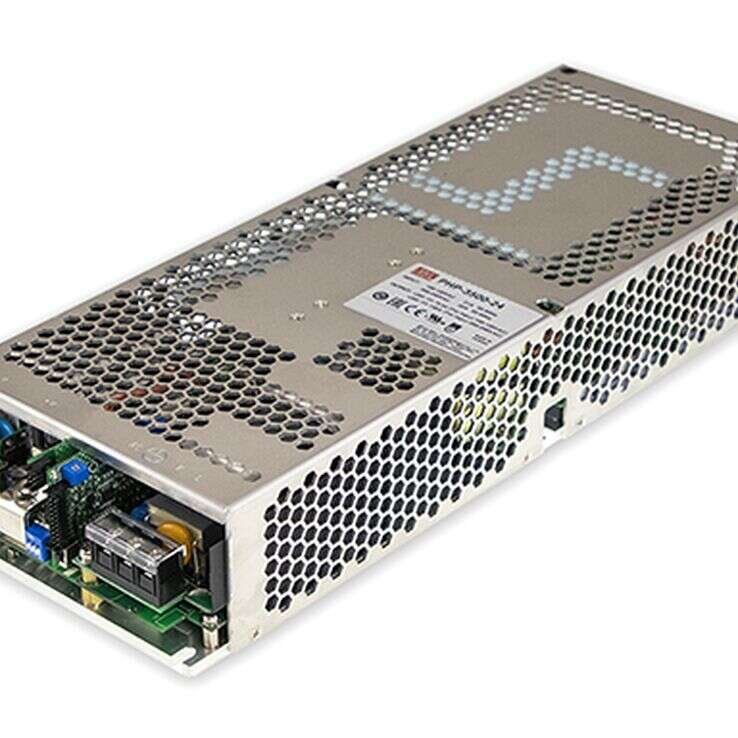

PHP-3500-HV Series
Enclosed Power Supplies 3500W
PHP-3500-HV Series Main Features:
PHP-3500-HV series is a 3500W single-output slim type power supply with 60mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 115V, 230V and 380VDC
Models:
Manufacturer:
Type:
Other features:
PHP-3500-115 / PHP-3500-230
PHP-3500-380
MEAN WELL
Programmable Power Supplies
High voltage output (115/230/380V DC)
Slim and low profile (60mm)
Fanless design with water or conduc
-tion cooling
Active PFC design and efficiency up to 96%
Built-in PMBus communication proto
-col, CANBus optional
Output voltage and constant current level
Protections: Short circuit/ Overload/
Over voltage/ Over temperature
LED indicator for power on
5 years warranty
Quote Request
| PHP-3500-115 | PHP-3500-230 | PHP-3500-380 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3500 | 3500 | 3500 | |||||||||||||
| Input Voltage | 90~264VAC | 90~264VAC | 90~264VAC | |||||||||||||
| Output Current | 25.2A | 15.2A | 9.2A | |||||||||||||
| Output Voltage | 115V | 230V | 380V | |||||||||||||
| Dimensions | 380x141.4x60 | 380x141.4x60 | 380x141.4x60 | |||||||||||||
| Working Temperature | -30~70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 arrpoved; design refers to BS EN/EN61558-1, BS EN/EN60335-1 | |||||||||||||||
| EMC Standards | EN55032 (CISPR32), EN61000-3-12, EN61000-3-3 | |||||||||||||||
