PPT-125 Series

125W Triple Output with PFC Function

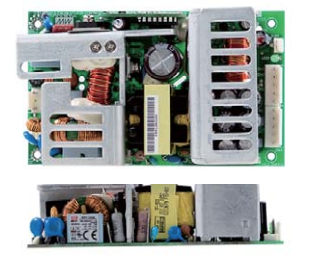

PPT-125

PPT-125 Series Main Features:

PWM control and regulated

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

PPT-125A / PPT-125B
PPT-125C / PPT-125D

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

Built-in active PFC function

High power density 6.117W/inch³

100% full load burn-in test

125W with 18CFM FAN

5"x3" compact size

LED indicator for power on

3 years warranty

Quote Request

    PPT-125APPT-125BPPT-125CPPT-125D
    Wattage7999.5100101
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Current1~10A, 0.8~8A, 0.05~0.5A1~11.5A, 0.3~3A, 0.05~0.5A1~11A, 0.25~2.5A, 0.05~0.5A1~7A, 0.25~2.5A, 0.05~0.5AA
    Output Voltage3.3V, 5V, 12V5V, 12V, -12V5V, 15V, -15V5V, 24V, 12V
    Output Voltage OptionsTripleTripleTripleTriple
    DC Output Adjustment:3.13~3.46V4.75~5.5V4.75~5.5V4.75~5.5V
    Dimensions127x76.2x34.6127x76.2x34.6127x76.2x34.6127x76.2x34.6
    Working Temperature-40~+85°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1 approve
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
