Home / AC-DC Open Frame Type / PS-05

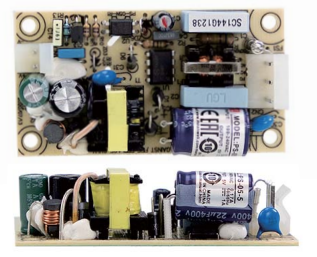

PS-05 Series

5W Single Output Switching Power Supply

PS-05

PS-05 Series Main Features:

Universal AC input / Full range

Low cost

Protections: Short circuit / Overload / Over voltage / Over temperature

Models:

Manufacturer:

Type:

Other features:

PS-05-5 / PS-05-12
PS-05-15 / PS-05-24
PS-05-48

MEAN WELL

Open Frame Power Supplies

Low leakage current <0.5mA

Cooling by free air convection

High reliability

Fix switching frequency at 67KHz

100% full load burn-in test

3 years warranty

Quote Request

    PS-05-5PS-05-12PS-05-15PS-05-24PS-05-48
    Wattage55.45.255.285.28
    Input Voltage85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC85~264VAC 120~370VDC
    Output Current0~1.2A0~0.5A0~0.4A0~0.25A0~0.125A
    Output Voltage5V12V15V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingle
    Dimensions75x40x2075x40x2075x40x2075x40x2075x40x20
    Working Temperature-20~+85°C
    Satety StandardsTUV BS EN/EN62368-1,EAC TP TC 004 approved, IEC62368-1 CB approved by TUV
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, EAC TP TC 020
