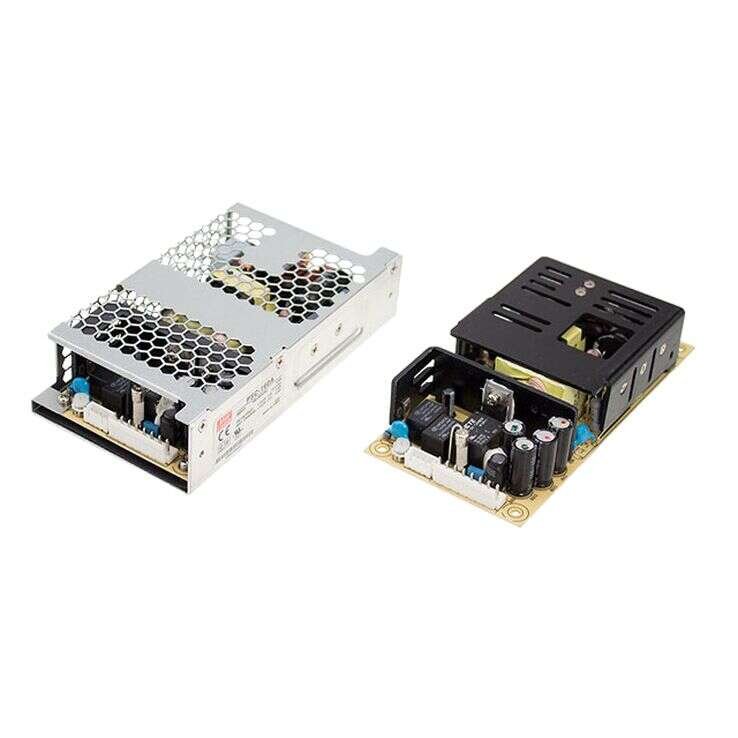

PSC-160 Series
Chargers 160W
PSC-160 Series Main Features:
Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Battery low protection / Battery polarity protection by fuse
Models:
Manufacturer:
Type:
Other features:
PSC-160A / PSC-160B
PSC-160A-C / PSC-160B-C
MEAN WELL
Chargers
6"x3" compact size
Relay contact signal output for AC OK
and Battery Low
Cooling by free air convection
100% full load burn-in test
Built-in active PFC function
2 years warranty
Quote Request
| PSC-160A | PSC-160B | PSC-160A-C | PSC-160B-C | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 160 | 160 | 160 | 160 | ||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||
| Output Current | CH1: 0~11.6A CH2: 4A | CH1: 0~5.8A CH2: 2A | CH1: 0~11.6A CH2: 4A | CH1: 0~5.8A CH2: 2A | ||||||||||||
| Output Voltage | 13.8V | 27.6V | 13.8V | 27.6V | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| Dimensions | 152.4x76.2x31 | 152.4x76.2x31 | 152.4x76.2x31 | 152.4x76.2x31 | ||||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011 (CISPR22) Class B, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||||||||||||
