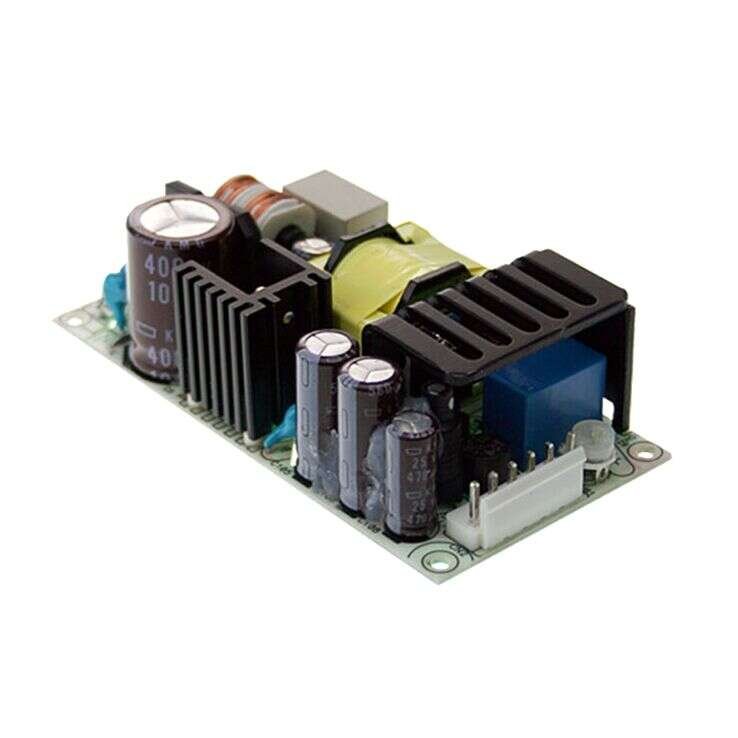

PSC-60 Series
Chargers 59.34W
PSC-60 Series Main Features:
UPS Function
Case available (PSC-60x-C)
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
PSC-35A / PSC-35B
PSC-35A-C / PSC-35B-C
MEAN WELL
Chargers
4”x2” compact size
Polarity protection by fuse
Alarm signal for AC OK and battery low
Cooling by free air convection
100% full load burn-in test
Universal AC input / Full range
2 years warranty
Quote Request
| PSC-60A | PSC-60B | PSC-60A-C | PSC-60B-C | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 59.34 | 59.34 | 59.34 | 59.34 | ||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||
| Output Current | 2.8A, 0.5A | 1.4A, 0.75A | 2.8A, 0.5A | 1.4A, 0.75A | ||||||||||||
| Output Voltage | 13.8V | 27.6V | 13.8V | 27.6V | ||||||||||||
| DC Output Adjustment | 12~15V | 24~29V | 12~15V | 24~29V | ||||||||||||
| Output Voltage Option | Dual | Dual | Dual | Dual | ||||||||||||
| Dimensions | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | ||||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B. EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
