Home / AC-DC Enclosed Type / PSPA-1000

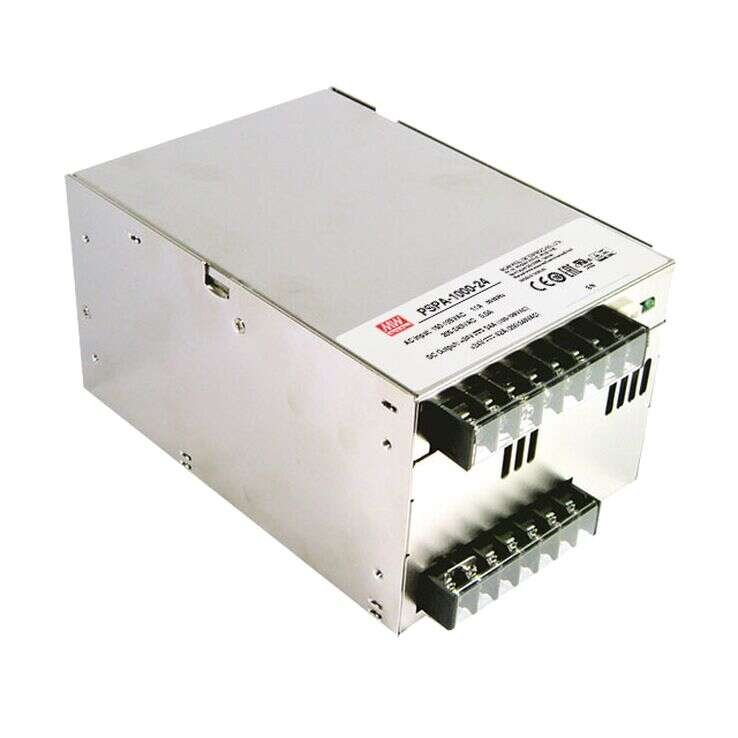

PSPA-1000 Series
Enclosed Power Supplies 960–1008W
PSPA-1000 Series Main Features:
Current sharing up to 4000W (3+1)
Built-in cooling fan ON-OFF control
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
PSPA-1000-12 / PSPA-1000-15
PSPA-1000-24 / PSPA-1000-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Built-in active PFC function
Forced air cooling by built-in DC fan
Built-in remote ON-OFF control
Built-in remote sense function
With DC OK Signal output
5 years warranty
Quote Request
| PSPA-1000-12 | PSPA-1000-15 | PSPA-1000-24 | PSPA-1000-48 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 960 | 960 | 1008 | 1008 | ||||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||||
| Output Current | 0~80A | 0~64A | 0~42A | 0~21A | ||||||||||||
| Output Voltage | 12 | 15 | 24 | 48 | ||||||||||||
| Output Voltage Option | Single | Single | Single | Single | ||||||||||||
| DC Output Adjustment | 11~14V | 14~17V | 22~28V | 46~56V | ||||||||||||
| Dimensions | 170*120*93 | 170*120*93 | 170*120*93 | 170*120*93 | ||||||||||||
| Working Temperature | -20-+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1, EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) EN61000-3-2,3 Compliance to EN55024, EN61000-6-2, EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
