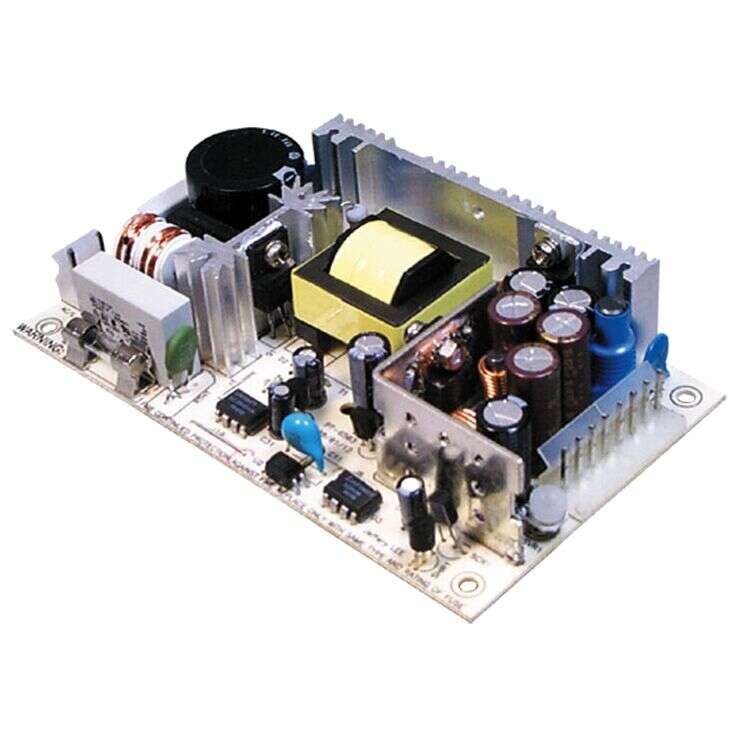

PT-45 Series

Open Frame Power Supplies 45W

PT-45

PT-45 Series Main Features:

Low leakage current <0.5mA

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

PT-45A / PT-45B
PT-45C / PT-4503

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

Cooling by free air convection

Fixed switching frequency @65kHz

100% full load burn-in test

Low cost, high reliability

2 years warranty

Quote Request

    PT-45APT-45BPT-45CPT-4503
    Wattage45454545
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Current0.4~5.0A, 0.2~2.5A, 0.0~0.5A0.4~5.0A, 0.2~2.5A, 0.0~0.5A0.4~5.0A, 0.2~2.3A, 0.0~0.5A0.0~5.0A, 0.2~7.0A, 0.0~1.2A
    Output Voltage5V, 12V, -5V5V, 12V, -12V5V, 15V, -15V3.3V, 5V, 12V
    Output Voltage OptionsTripleTripleTripleTriple
    DC Output Adjustment4.75~5.5V4.75~5.5V4.75~5.5V4.75~5.5V
    Dimensions127x76x28127x76x28127x76x28127x76x28
    Working Temperature-10~+60°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1 approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
