Home / AC-DC Open Frame Type / PT-65

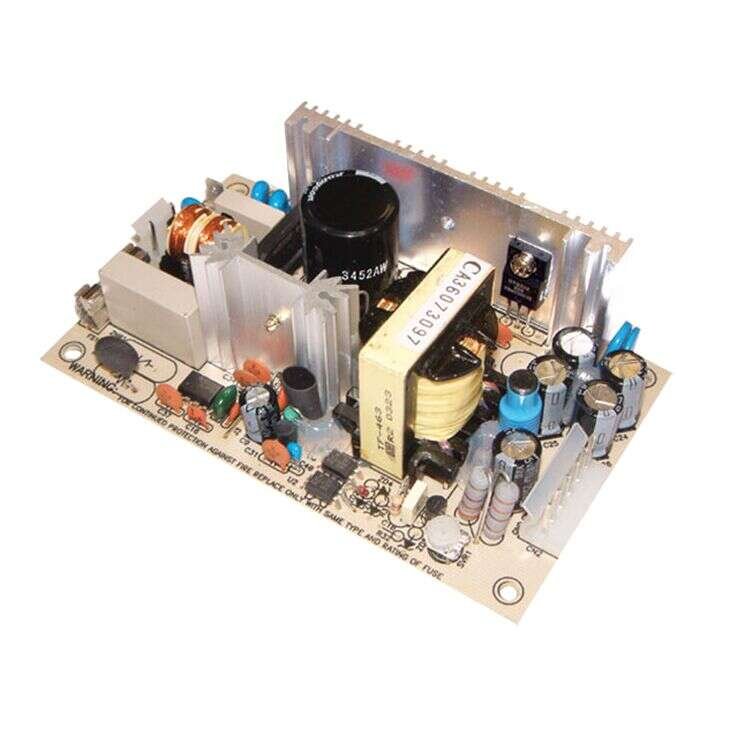

PT-65 Series

Open Frame Power Supplies 65W

PT-65

PT-65 Series Main Features:

Fixed switching frequency at 65kHz

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

PT-65A / PT-65B
PT-65C / PT-65D

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

Cooling by free air convection

Low leakage current <0.5mA

Low cost, high reliability

100% full load burn-in test

2 years warranty

Quote Request

    PT-65APT-65BPT-65CPT-65D
    Wattage65656565
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Current0~7.0A, 0.2~3.2A, 0.4~6.0A, 0.2~2.6A0.4~7.0A, 0.2~3.2A, 0.0~0.7A0.4~7.0A, 0.2~2.6A, 0.0~0.7A0.5~5.0A, 0.2~4.0A, 0.2~1.3A
    Output Voltage5V, 12V, -5V5V, 12V, -12V5V, 15V, -15V5V, 12V, 24V
    Output Voltage OptionsTripleTripleTripleTriple
    DC Output Adjustment4.75~5.5V4.75~5.5V4.75~5.5V4.75~5.5V
    Dimensions127x76x42127x76x42127x76x42127x76x42
    Working Temperature-20~+85°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1 approved
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
