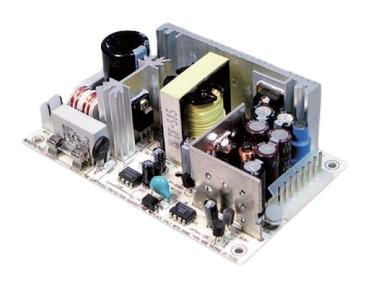

PT-6503 Series
65W Triple Output with 3.3V output
PT-6503 Series Main Features:
100% full load burn-in test
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
PT-6503
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
Fixed switching frequency at 65KHz
3 years warranty
Quote Request
| PT-6503 | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 65 | |||||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | |||||||||||||||
| Output Current | 0~7A, 0.2~10A, 0~1.2A | |||||||||||||||
| Output Voltage | 3.3V, 5V, 12V | |||||||||||||||
| Output Voltage Options | Triple | |||||||||||||||
| DC Output Adjustment | 3~3.6V | |||||||||||||||
| Dimensions | 127x76x42 | |||||||||||||||
| Working Temperature | -20~+85°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||||||||
