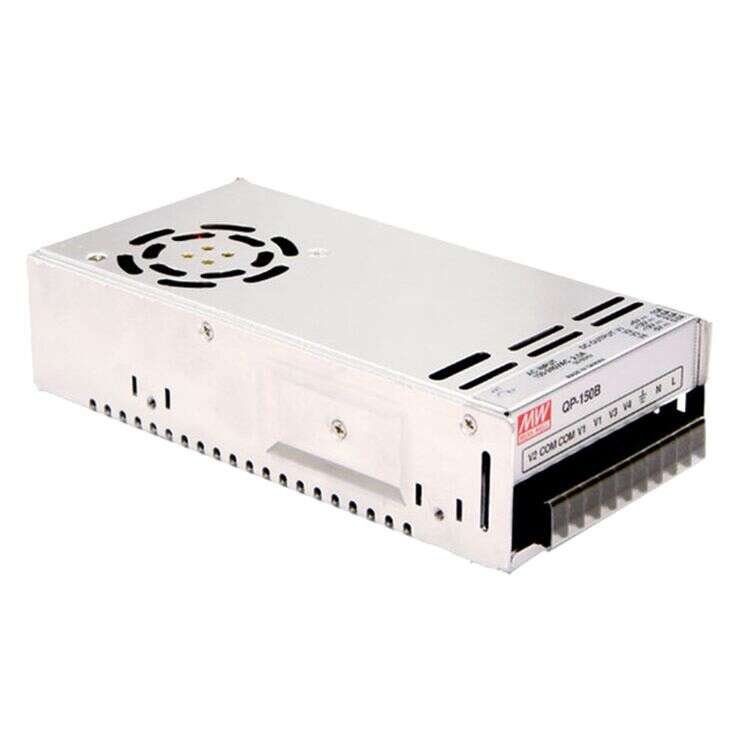

QP-150 Series
Enclosed Power Supplies 150W
QP-150 Series Main Features:
Universal AC input / Full range
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
QP-150-3A / QP-150-3B
QP-150-3C / QP-150-3D
QP-150D / QP-150F
MEAN WELL
Enclosed Power Supplies
PF>0.98@115VAC; >0.95@230VAC
Forced air cooling by built-in DC fan
Over temperature protection option
100% full load burn-in test
3 years warranty
Quote Request
| QP-150-3A | QP-150-3B | QP-150-3C | QP-150-3D | QP-150D | QP-150F | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 146 | 150.2 | 152 | 150.2 | 153.2 | 152 | ||||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | ||||||||||
| Output Current | 3~15A / 0~15A / 0.4~5A / 0~1A | 3~15A / 0~15A / 0.4~5A / 0~1A | 3~15A / 0~15A / 0.4~5A / 0~1A | 3~15A / 0~15A / 0.3~3A / 0~1A | 3~15A / 0.4~5A / 0.3~2A / 0~1A | 3~15A / 0.4~4A / 0.3~2A / 0~1A | ||||||||||
| Output Voltage | 5V, 3.3V, 12V, -5V | 5V, 3.3V, 12V, -12V | 5V, 3.3V, 15V, -15V | 5V, 3.3V, 24V, -12V | 5V, 12V, -12V, -5V | 5V, 15V, -15V, -5V | ||||||||||
| Output Voltage Option | Quad | Quad | Quad | Quad | Quad | Quad | ||||||||||
| DC Output Adjustment | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | ||||||||||
| Dimensions | 199*99*50 | 199*99*50 | 199*99*50 | 199*99*50 | 199*99*50 | 199*99*50 | ||||||||||
| Working Temperature | -10-+60°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV BS EN/EN62368-1 EAC TP TC 004 approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |||||||||||||||
