Home / AC-DC Enclosed Type / QP-200

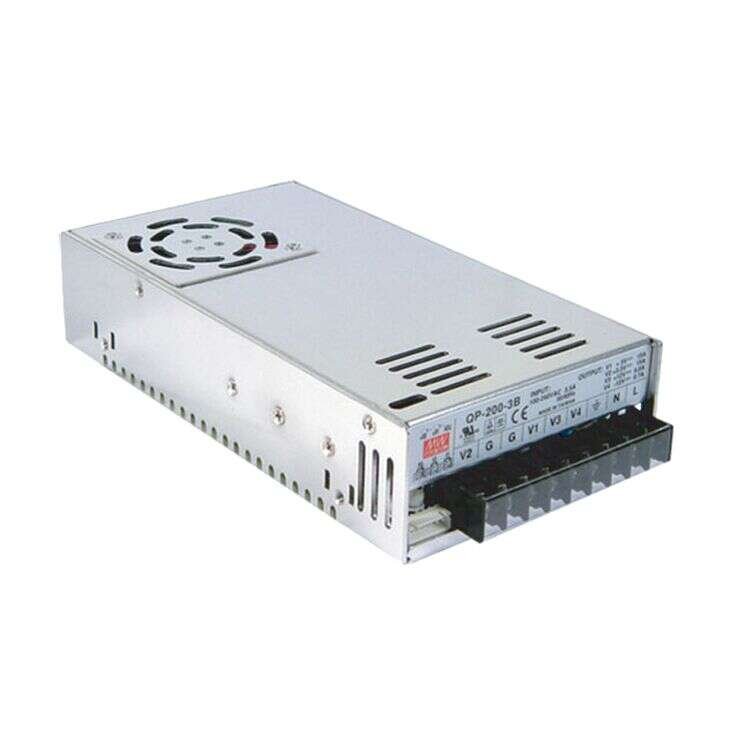

QP-200 Series
Enclosed Power Supplies 200W
QP-200 Series Main Features:
Universal AC input / Full range
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
QP-200-3A / QP-200-3B
QP-200-3C / QP-200-3D
QP-200-3E / QP-200D
QP-200F
MEAN WELL
Enclosed Power Supplies
PF>0.98@115VAC; >0.95@230VAC
Forced air cooling by built-in DC fan
Over temperature protection option
100% full load burn-in test
3 years warranty
Quote Request
| QP-200-3A | QP-200-3B | QP-200-3C | QP-200-3D | QP-200-3E | QP-200D | QP-200F | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |||||||||
| Input Voltage | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | 90-264VAC 127-370VDC | |||||||||
| Output Current | 3~20A / 0~20A / 0.5~8A / 0~1A | 3~20A / 0~20A / 0.5~8A / 0~1A | 3~20A / 0~20A / 0.5~7A / 0~1A | 3~20A / 0~20A / 0.4~6A / 0~1A | 3~20A / 0~20A / 0.4~6A / 0~1A | 3~20A / 0~7A / 0.4~6A / 0~1A | 3~20A / 0~6A / 0.4~6A / 0~1A | |||||||||
| Output Voltage | 5V, 3.3V, 12V, -5V | 5V, 3.3V, 12V, -12V | 5V, 3.3V, 15V, -15V | 5V, 3.3V, 24V, -12V | 5V, 3.3V, 24V, -15V | 5V, 12V, 24V, -12V | 5V, 15V, 24V, -15V | |||||||||
| Output Voltage Option | Quad | Quad | Quad | Quad | Quad | Quad | Quad | |||||||||
| DC Output Adjustment | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | CH1: 4.75~5.5V; CH2:3.14~3.63V | |||||||||
| Dimensions | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | 215x115x50 | |||||||||
| Working Temperature | -25-+70°C215 x 115 x 50 | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
