Home / AC-DC Enclosed Type / RD-125

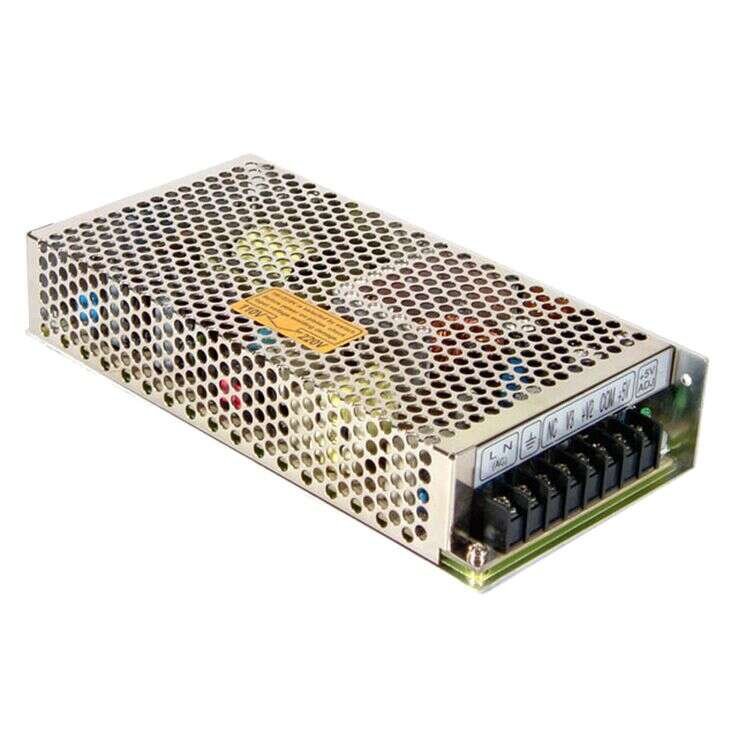

RD-125 Series
Enclosed Power Supplies 125W
RD-125 Series Main Features:
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RD-125-1224 / RD-125-1248
RD-125-2412 / RD-125-2448
RD-125-4812 / RD-125-4824
RD-125A / RD-125B
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
Miniature size, high power density
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RD-125-1224 | RD-125-1248 | RD-125-2412 | RD-125-2448 | RD-125-4812 | RD-125-4824 | RD-125A | RD-125B | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 125 | 125 | 125125 | 125 | 125 | 125 | 125 | 125 | ||||||||
| Input Voltage | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | ||||||||
| Output Current | 0~7A, 0~5A | 0~7A, 0~2.5A | 0~5A, 0~7A | 0~4A, 0~2.5A | 0~2.5A, 0~7A | 0~2.5A, 0~4A | 0~12A, 0~10A | 0~10A,0~5A | ||||||||
| Output Voltage | 12, 24 | 12, 48 | 24, 12 | 24, 48 | 48, 12 | 48, 24 | 5, 12 | 5, 24 | ||||||||
| Output Voltage Option | Dual | Dual | Dual | Dual | Dual | Dual | Dual | Dual | ||||||||
| DC Output Adjustment | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 4.75~5.5V | CH1: 4.75~5.5V | ||||||||
| Dimensions | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | ||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||||||||||
