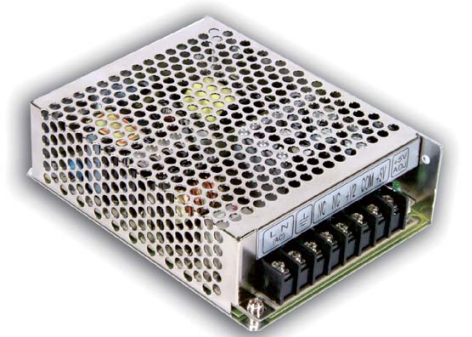

RID-65 Series
Enclosed Power Supplies 66–68W
RID-65 Series Main Features:
Cooling by free air convection
High efficiency, long life and high reliability
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RID-65A / RID-65B
MEAN WELL
Enclosed Power Supplies
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70℃
All using 105℃ long life electrolytic capacitors
100% full load burn-in test
Universal AC input / Full range
Withstand 5G vibration test
LED Indicator for power on
3 years warranty
Quote Request
| RID-65A | RID-65B | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 65 | 65 | ||||||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||||||
| Output Current | 0~8A, 0~4A | 0~8A, 0~3A | ||||||||||||||
| Output Voltage | 5, 12 | 5, 24 | ||||||||||||||
| Output Voltage Option | Dual | Dual | ||||||||||||||
| DC Output Adjustment | CH1: 4.75~5.5V | CH1: 4.75~5.5V | ||||||||||||||
| Dimensions | 129 x 98 x 38 | 129 x 98 x 38 | ||||||||||||||
| Working Temperature | -25~+70°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV BS EN/EN62368-1, approved | |||||||||||||||
| EMC Standards | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020 | |||||||||||||||
