Home / AC-DC Open Frame Type / RPD-60

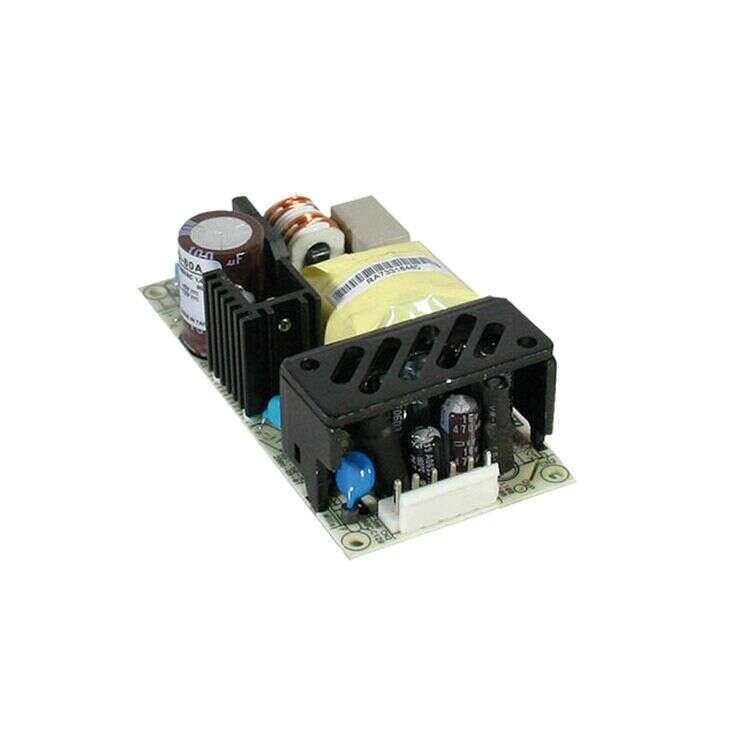

RPD-60 Series
Medical Grade Power Supplies 60W
RPD-60 Series Main Features:
Low leakage current <200uA
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPD-60A / RPD-60B
MEAN WELL
Open Frame Power Supplies
4"x2" miniatures size
Universal AC Input / Full range
Medical safety approved
110% peak load capability
High power density 6.57W/in3
Cooling by free air convection
3 years warranty
Quote Request
| RPD-60A | RPD-60B | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | ||||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||||
| Output Current | 0.5~5.5A, 0.1~2.2A | 0.5~3.85A, 0.1~1.65A | ||||||||||||||
| Output Voltage | 5V, 12V | 5V, 24V | ||||||||||||||
| Output Voltage Options | Dual | Dual | ||||||||||||||
| Dimensions | 101.6x50.8x29 | 101.6x50.8x29 | ||||||||||||||
| Working Temperature | -20~+65°C | |||||||||||||||
| Satety Standards | UL60601-1, TUV EN60601-1, UL60950-1, EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level | |||||||||||||||
