Home / AC-DC Open Frame Type / RPD-65

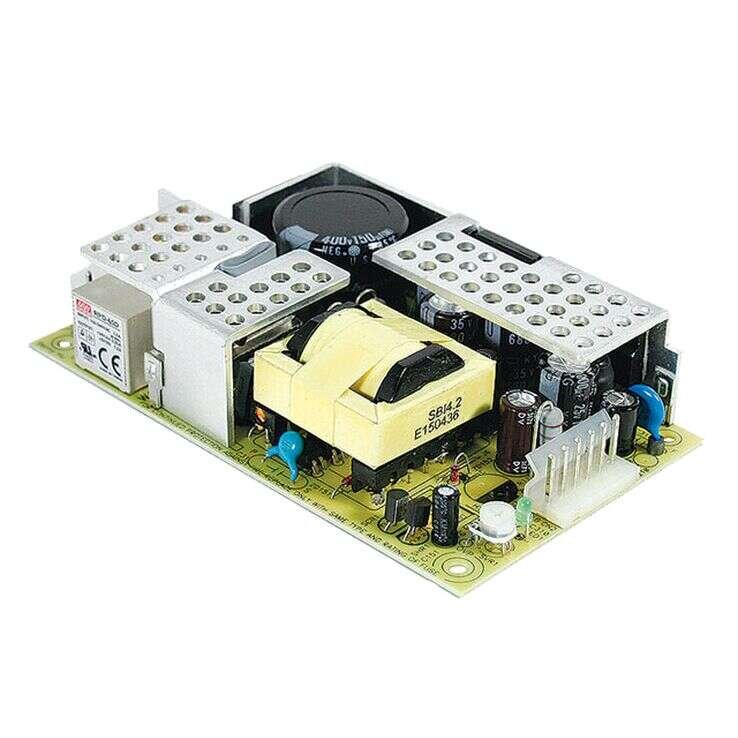

RPD-65 Series
Medical Grade Power Supplies 65W
RPD-65 Series Main Features:
Low leakage current < 1mA
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPD-65C / RPD-65D
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Cooling by free air convection
12V or 24V high peak current capability
60-65W free air convection
77-80W with 18 CFM forced air
Optional case available (RPD-65x-C)
Low cost, high reliability
100% full load burn-in test
2 years warranty
Quote Request
| RPD-65C | RPD-65D | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 65 | 65 | ||||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||||
| Output Current | 0~5.8A, 0~1.5A | 0~2.9A, 0~1.5A | ||||||||||||||
| Output Voltage | 12V, 5V | 5V, 24V | ||||||||||||||
| Output Voltage Options | Dual | Dual | ||||||||||||||
| DC Output Adjustment | 11.4~12.8V | 22.8~26.4V | ||||||||||||||
| Dimensions | 127x76x29 | 127x76x29 | ||||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL62368-1, TUV EN62368-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,-3 BS EN/ BS EN/ , EAC TP TC 020 | |||||||||||||||
