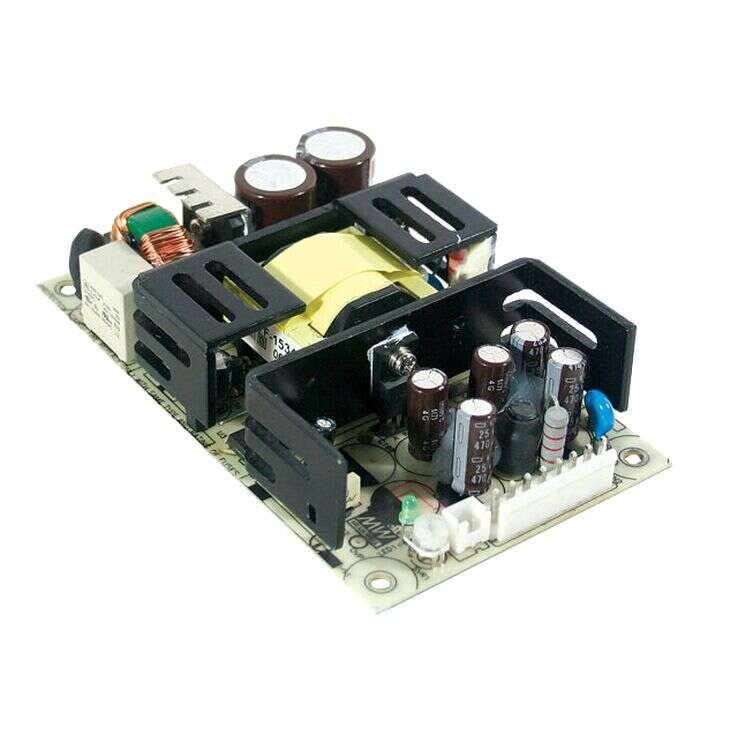

RPD-75 Series
Medical Grade Power Supplies 84–120W
RPD-75 Series Main Features:
Low leakage current <200uA
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPD-75A / RPD-75B
MEAN WELL
Open Frame Power Supplies
Universal AC Input / Full range
Fixed switching frequency at 45kHz
Medical safety approved
Fixed switching frequency at 65kHz
Free air convection with 23.5CFM forced air
Suitable for medical and IT applications
3 years warranty
Quote Request
| RPD-75A | RPD-75B | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | ||||||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | ||||||||||||||
| Output Current | 1~9.5A, 0.3~4A | 1~6.8A, 0.2~2.7A | ||||||||||||||
| Output Voltage | 5V, 12V | 5V, 24V | ||||||||||||||
| DC Output Adjustment | 4.75~5.5V | 4.75~5.5V | ||||||||||||||
| Dimensions | 127x76.2x31 | 127x76.2x31 | ||||||||||||||
| Working Temperature | -20~+60°C | |||||||||||||||
| Satety Standards | UL60601-1, TUV EN60601-1 approved | |||||||||||||||
| EMC Standards | EN55011 / EN55022 class B, EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN60601-1-2, EN61204-3 medical level | |||||||||||||||
