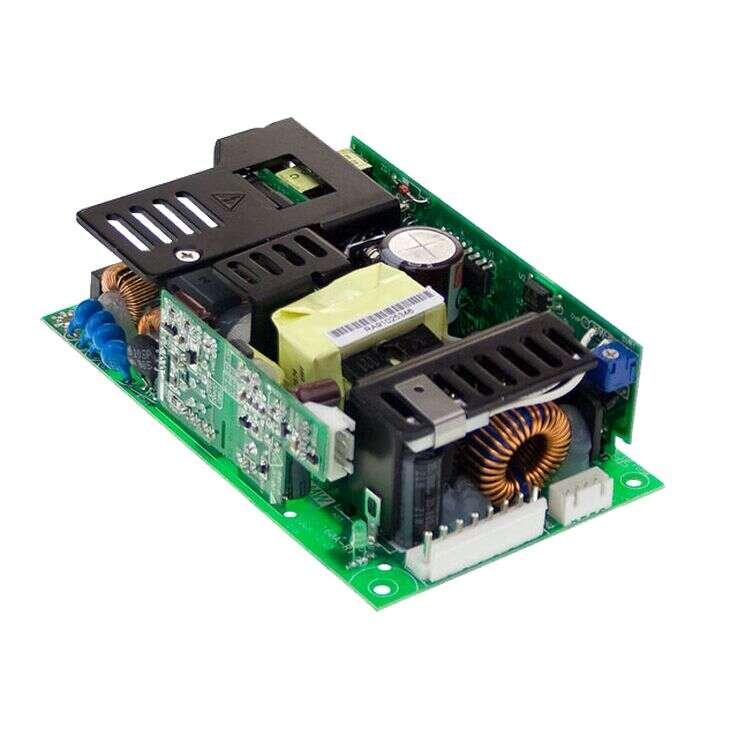

RPS-160 Series
Medical Grade Power Supplies 160W
RPS-160 Series Main Features:
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPS-160-5 / RPS-160-12
RPS-160-15 / RPS-160-24
RPS-160-48
MEAN WELL
Open Frame Power Supplies
Universal AC input / Full range
5"x3" compact size
Free air convection with 20.5 CFM forced air
With power good and fail signal output
Built-in remote sense function for 5-15V
3 years warranty
Quote Request
| RPS-160-5 | RPS-160-12 | RPS-160-15 | RPS-160-24 | RPS-160-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 160 | 160 | 160 | 160 | 160 | |||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||
| Output Current | 0~30A | 0~12.9A | 0~10.3A | 0~6.5A | 0~3.25A | |||||||||||
| Output Voltage | 5V | 12V | 15V | 24V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 4.5~5.5V | 10.8~13.2V | 13.5~16.5V | 22~27V | 45.6~50.4V | |||||||||||
| Dimensions | 127x76.2x34.6 | 127x76.2x34.6 | 127x76.2x34.6 | 127x76.2x34.6 | 127x76.2x34.6 | |||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | UL60601-1, TUV EN60601-1 approved | |||||||||||||||
| EMC Standards | EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN60601-1-2 | |||||||||||||||
