Home / AC-DC Open Frame Type / RPS-200

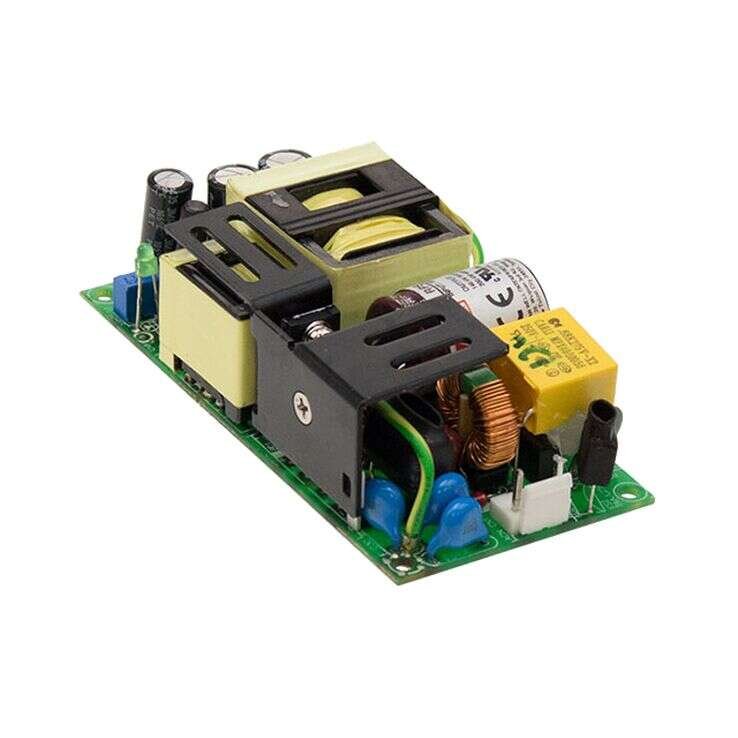

RPS-200 Series

Medical Grade Power Supplies 200.4–202.5W

RPS-200

RPS-200 Series Main Features:

No load power consumption <0.1W

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

RPS-200-12 / RPS-200-15
RPS-200-24 / RPS-200-27
RPS-200-48

MEAN WELL

Open Frame Power Supplies

3"x2" miniatures size

Universal AC Input / Full range

Medical safety approved

Low leakage current <100uA

Suitable for BF application with
appropriate system consideration

High efficiency up to 91%

For 1U applications

LED indicator for power on

3 years warranty

Quote Request

    RPS-200-12RPS-200-15RPS-200-24RPS-200-27RPS-200-48
    Wattage200.4201201.6202.5201.6
    Input Voltage80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC
    Output Current0~11.7A0~9.4A0~5.9A0~5.3A0~3A
    Output Voltage12V15V24V27V48V
    Output Voltage OptionsSingleSingleSingleSingleSingle
    DC Output Adjustment11.4~12.6V14.3~15.8V22.8~25.2V25.6~28.4V45.6~50.4V
    Dimensions101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29
    Working Temperature-30~+70°C
    Satety StandardsANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved
    EMC StandardsEN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A
