Home / AC-DC Open Frame Type / RPS-300

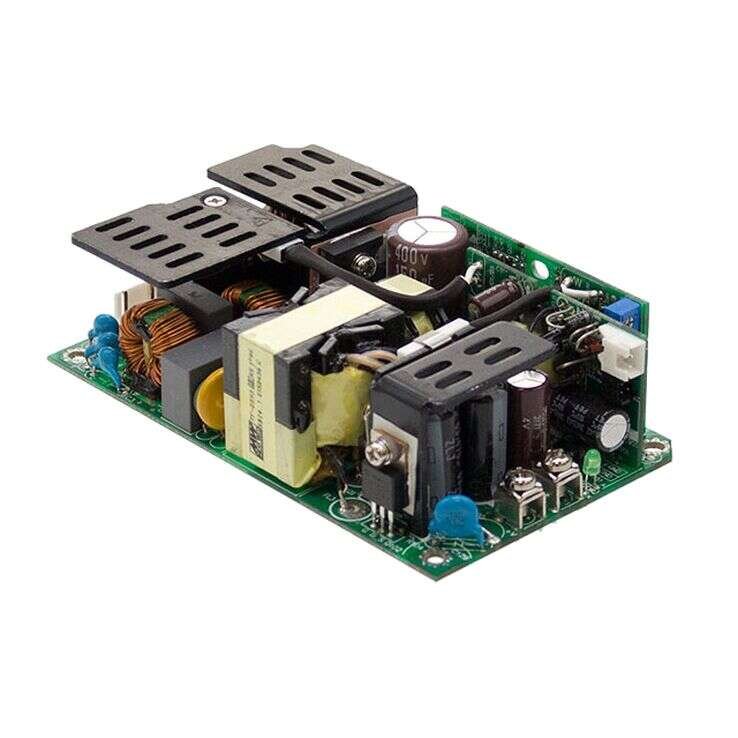

RPS-300 Series
Medical Grade Power Supplies 300W
RPS-300 Series Main Features:
Universal AC input/Full range
Built-in active PFC function
Protections: Short circuit/Overload/Over voltage/Over temperature
Models:
Manufacturer:
Type:
Other features:
RPS-300-12 / RPS-300-15
RPS-300-24 / RPS-300-27
RPS-300-48
MEAN WELL
Open Frame Power Supplies
Built-in 12V/0.5A auxiliary output
5" x 3" compact size
Withstand 300VAC surge input for 5 seconds
Free air convection for 200W and 300W
with 20.5CFM forced air
With power good and fail signal output
High efficiency up to 91%
No load power consumption under 0.5W
by PS-ON control
Standby 5V@1A with fan @ 0.6A without fan
3 years warranty
Quote Request
| RPS-300-12 | RPS-300-15 | RPS-300-24 | RPS-300-27 | RPS-300-48 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 300 | 300 | 300 | 300 | 300 | |||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||
| Output Current | 0~25A | 0~20A | 0~12.5A | 0~11.12A | 0~6.25A | |||||||||||
| Output Voltage | 12V | 15V | 24V | 27V | 48V | |||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | |||||||||||
| DC Output Adjustment | 11.4~12.6V | 14.25~15.75V | 22.8~25.2V | 25.65~28.35V | 45.6~50.4V | |||||||||||
| Dimensions | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | 127x76.2x35 | |||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1, TUV EN60601-1, IEC60601-1 approved | |||||||||||||||
| EMC Standards | Compliance to EN55011 (CISPR11), EN55022 (CISPR22), Conduction: Class B, Radiation Class A: EN61000-3-2,-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN60601-1-2, criteria A | |||||||||||||||
