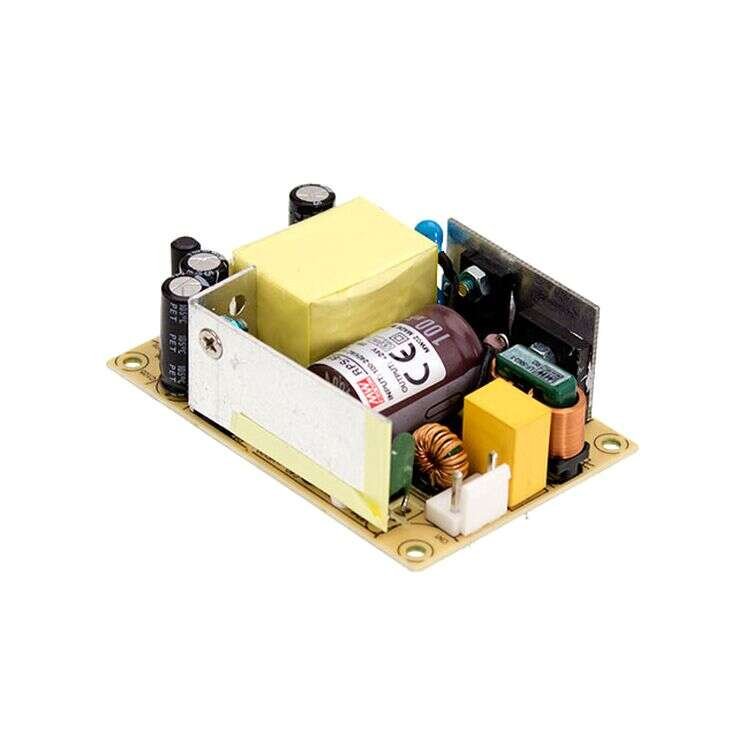

RPS-45 Series

Medical Grade Power Supplies 26.4–45.6W

RPS-45

RPS-45 Series Main Features:

No load power consumption <0.1W

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

RPS-45-3.3 / RPS-45-5
RPS-45-7.5 / RPS-45-12
RPS-45-15 / RPS-45-24
RPS-45-48

MEAN WELL

Open Frame Power Supplies

3"x2" miniatures size

Universal AC Input / Full range

Medical safety approved

Low leakage current <100uA

Class II (without FG) istallations

Suitable for BF application with
appropriate system consideration

High efficiency up to 91%

For 1U applications

LED indicator for power on

3 years warranty

Quote Request

    RPS-45-3.3RPS-45-5RPS-45-7.5RPS-45-12RPS-45-15RPS-45-24RPS-45-48
    Wattage26.44040.545.64545.645
    Input Voltage80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC
    Output Current0~8.8A0~8.8A0~5.95A0~4.18A0~3.3A0~2.1A0~1.03A
    Output Voltage3.3V5V7.5V12V15V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingle
    DC Output Adjustment3.1-3.6V4.7-5.5V7.12-8.2V11.4-13.2V13.5-16.5V22.8-27.6V45.6-52.8V
    Dimensions76.2 x 50.8 x 2476.2 x 50.8 x 2476.2 x 50.8 x 2476.2 x 50.8 x 2476.2 x 50.8 x 2476.2 x 50.8 x 2476.2 x 50.8 x 24
    Working Temperature-30~+70°C/td>
    Satety StandardsANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved
    EMC StandardsEN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A
