Home / AC-DC Open Frame Type / RPS-500

RPS-500 Series

Medical Grade Power Supplies 550W

RPS-500

RPS-500 Series Main Features:

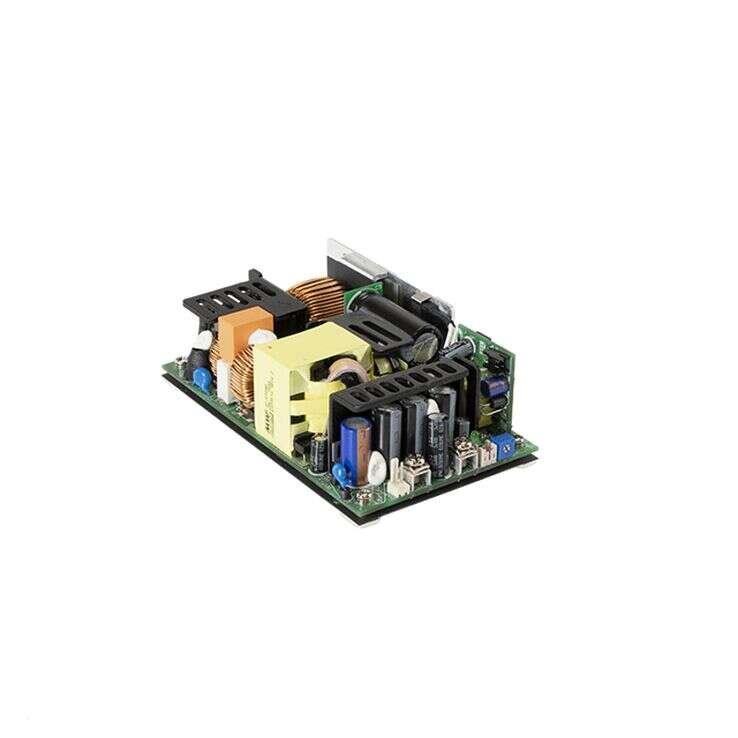

RPS-500 is a 500W highly reliable green PCB type medical power supply with a high power density on the 5" by 3" footprint.

Models:

Manufacturer:

Type:

Other features:

RPS-500-12 / RPS-500-15
RPS-500-18 / RPS-500-24
RPS-500-27 / RPS-500-36
RPS-500-48

MEAN WELL

Open Frame Power Supplies

5" by 3" compact size

320W convection, 500W force air

550W peak power (3 sec)

EMI for both class I and class II configuration

No load power consumption <0.5W
by PS_ON control

High efficiency up to 94%

Protections: short circuit/ overload/
over voltage/ over temperature

LED indicator for power on

3 years warranty

Quote Request

    RPS-500-12RPS-500-15RPS-500-18RPS-500-24RPS-500-27RPS-500-36RPS-500-48
    Wattage550550550550550550550
    Input Voltage80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC80~264VAC
    Output Current41.6A 25CFM
    26.7A Convection    		33.3A 25CFM
    21.3A Convection    		27.8A 25CFM
    17.8A Convection    		20.8A 25CFM
    13.4A Convection    		18.5A 25CFM
    11.9A Convection    		13.9A 25CFM
    8.9A Convection    		10.4A 25CFM
    6.7A Convection
    Output Voltage12V15V18V24V27V36V48V
    DC Output Adjustment11.4~12.6V14.3~15.8V17.1~18.9VV22.8~25.2V25.6~28.4V 34.2~37.8V45.6~50.4V
    Dimensions5"x3"x1.61"INCH5"x3"x1.61"INCH5"x3"x1.61"INCH5"x3"x1.61"INCH5"x3"x1.61"INCH5"x3"x1.61"INCH5"x3"x1.61"INCH
    Working Temperature-30~+70°C
    Satety StandardsIEC60601-1, TUV EN60601-1, UL ANSI/AAMI ES60601-1 (3.1 version), EAC TP TC 020. CAN/CSA-C22.2 No. 60601-1:14 - Edition 3 approved; Design to refer to EN60335-1 (by request)
