Home / AC-DC Open Frame Type / RPS-60

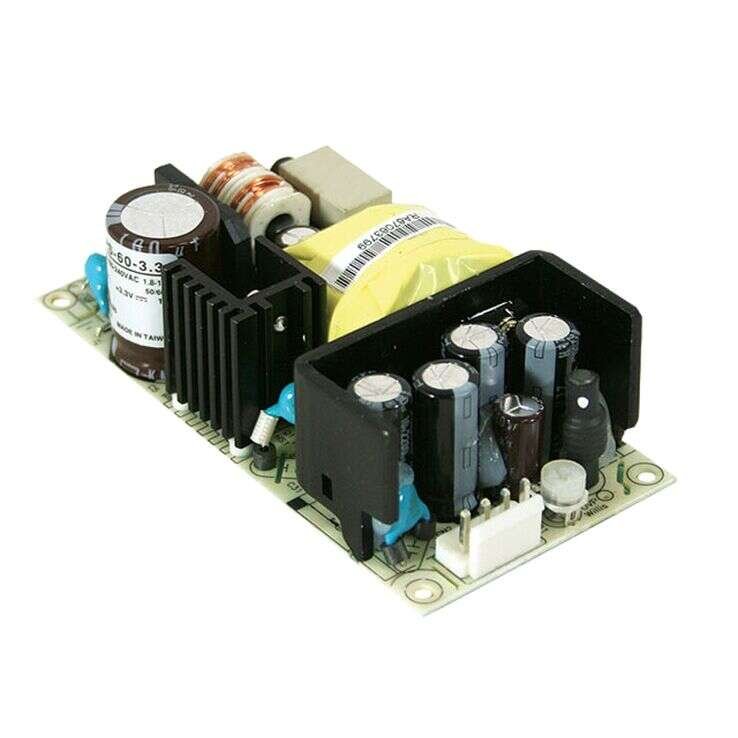

RPS-60 Series
Medical Grade Power Supplies 60W
RPS-60 Series Main Features:
No load power consumption <0.75W
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPS-60-3.3 / RPS-60-5
RPS-60-12 / RPS-60-15
RPS-60-24 / RPS-60-48
MEAN WELL
Open Frame Power Supplies
4"x2" miniatures size
Universal AC Input / Full range
Medical safety approved
Low leakage current <200uA
110% peak load capability
High power density 6.57W/in3
Cooling by free air convection
3 years warranty
Quote Request
| RPS-60-3.3 | RPS-60-5 | RPS-60-12 | RPS-60-15 | RPS-60-24 | RPS-60-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 60 | 60 | 60 | 60 | 60 | 60 | ||||||||||
| Input Voltage | 90~264VAC 120~370VDC | 90~264VAC 120~370VDC | 90~264VAC 120~370VDC | 90~264VAC 120~370VDC | 90~264VAC 120~370VDC | 90~264VAC 120~370VDC | ||||||||||
| Output Current | 0~11A | 0~11A | 0~5.5A | 0~4.4A | 0~2.75A | 0~1.375A | ||||||||||
| Output Voltage | 3.3V | 5V | 12V | 15V | 24V | 48V | ||||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.1~3.6V | 4.75~5.5V | 11.4~13.2V | 13.5~16.5V | 22.8~27.6V | 45.6~52.8V | ||||||||||
| Dimensions | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | 101.6x50.8x29 | ||||||||||
| Working Temperature | -25~+70°C/td> | |||||||||||||||
| Satety Standards | Ul6061-1, UL60950-1, TUV EN60601-1, EN60950 approved | |||||||||||||||
| EMC Standards | EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level, criteria A | |||||||||||||||
