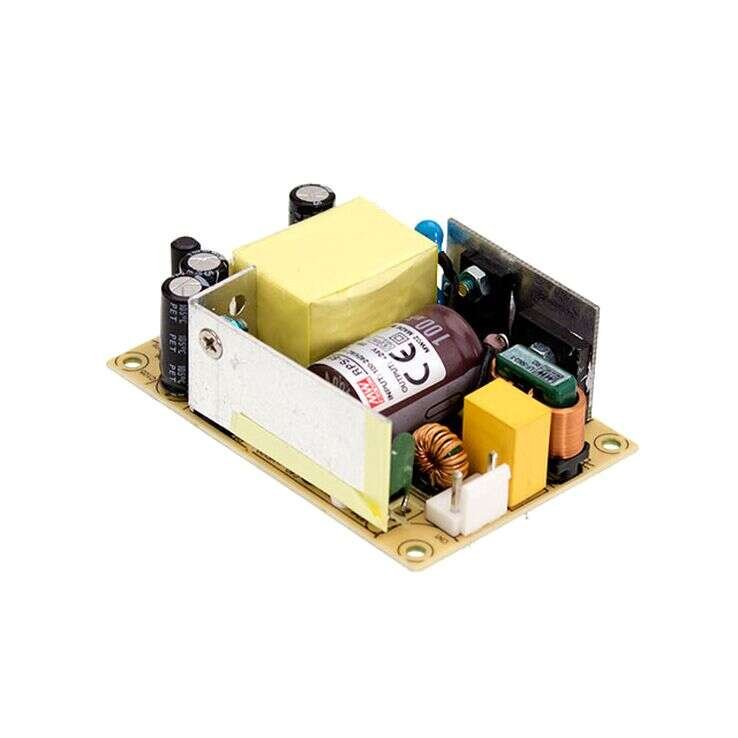

RPS-65 Series
Medical Grade Power Supplies 33–65.3W
RPS-65 Series Main Features:
No load power consumption <0.1W
Cooling by free air convection
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPS-65-3.3 / RPS-65-5
RPS-65-7.5 / RPS-65-12
RPS-65-15 / RPS-65-24
RPS-65-48
MEAN WELL
Open Frame Power Supplies
3"x2" miniatures size
Universal AC Input / Full range
Medical safety approved
Low leakage current <100uA
Suitable for BF application with
appropriate system consideration
High efficiency up to 91%
For 1U applications
LED indicator for power on
3 years warranty
Quote Request
| RPS-65-3.3 | RPS-65-5 | RPS-65-7.5 | RPS-65-12 | RPS-65-15 | RPS-65-24 | RPS-65-48 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 33 | 50 | 60 | 65 | 65.1 | 65 | 65.3 | |||||||||
| Input Voltage | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | 80~264VAC | |||||||||
| Output Current | 0~11A | 0~11A | 0~8.8A | 0~5.96A | 0~4.77A | 0~2.98A | 0~1.49A | |||||||||
| Output Voltage | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 48V | |||||||||
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | |||||||||
| DC Output Adjustment | 2.9-3.6V | 4.7-5.5V | 7.12-8.3V | 11.4-13.2V | 13.5-16.5V | 22.8-27.6V | 45.6-52.8V | |||||||||
| Dimensions | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | 76.2x50.8x24 | ||||||||||
| Working Temperature | -30~+70°C/td> | |||||||||||||||
| Satety Standards | ANSI/AAMI ES60601-1, TUV EN60601-1 / IEC60601-1 approved | |||||||||||||||
| EMC Standards | EN55011 (CISPR11) Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2 Medical level, criteria A | |||||||||||||||
