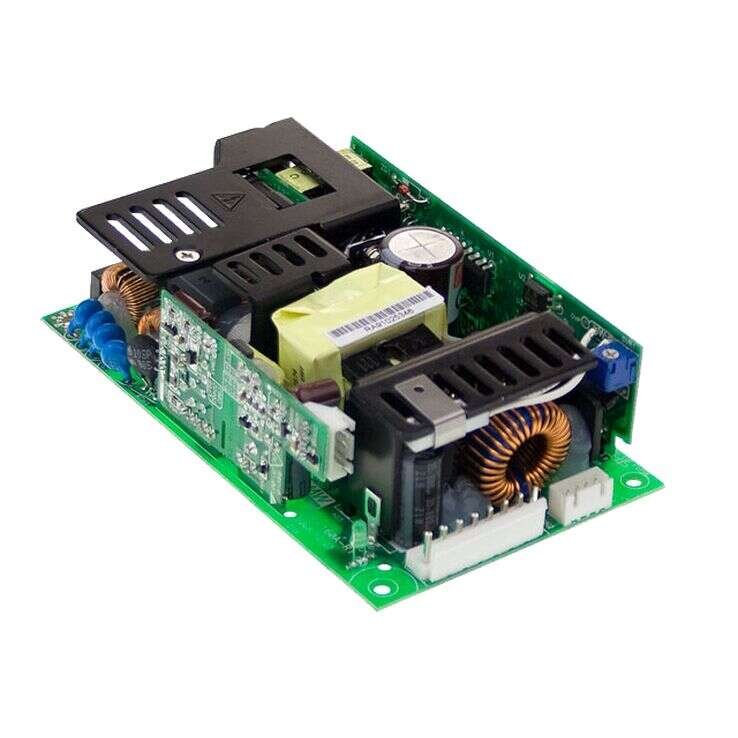

RPT-160 Series

Medical Grade Power Supplies 160W

RPS-160

RPT-160 Series Main Features:

Built-in active PFC function

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

RPT-160A / RPT-160B
RPT-160C / RPT-160D

MEAN WELL

Open Frame Power Supplies

Universal AC Input / Full range

5"x3" compact size

Free air convection with 20.5 CFM forced air

With power good and fail signal output

3 years warranty

Quote Request

    RPT-160ARPT-160BRPT-160CRPT-160D
    Wattage160160160160
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Current0.6~14A, 0.2~5.5A, 0.1~1.0A0.6~14A, 0.2~5.0A, 0.1~1.0A0.6~14A, 0.1~3.6A, 0.1~1.0A0.3~11A, 0.2~5.0A, 0.15~1.2A
    Output Voltage5V, 12V, -5V5V, 12V, -12V5V, 15V, -15V5V, 15V, 24V
    Output Voltage OptionsTripleTripleTripleTriple
    DC Output Adjustment5~5.5V5~5.5V5~5.5V5~5.5V
    Dimensions127x76.2x34.6127x76.2x34.6127x76.2x34.6127x76.2x34.6
    Working Temperature-20~+70°C
    Satety StandardsUL60601-1, TUV EN60601-1 approved
    EMC StandardsEN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
