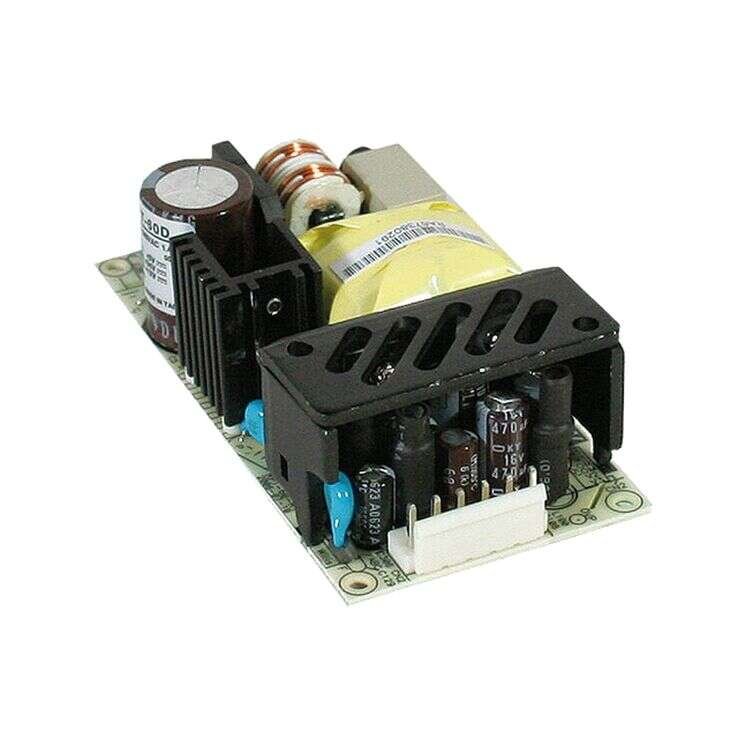

RPT-60 Series

Medical Grade Power Supplies 60W

RPT-60

RPT-60 Series Main Features:

Low leakage current <200uA

Protections: Short circuit / Overload / Over voltage

Models:

Manufacturer:

Type:

Other features:

RPT-60A / RPT-60B
RPT-60C / RPT-60D
RPT-6003

MEAN WELL

Open Frame Power Supplies

4"x2" miniatures size

Universal AC Input / Full range

Medical safety approved

110% peak load capability

High power density 6.57W/in3

Cooling by free air convection

3 years warranty

Quote Request

    RPT-60ARPT-60BRPT-60CRPT-60DRPT-6003
    Wattage6060606060
    Input Voltage90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC90~264VAC 127~370VDC
    Output Current0.5~4.4A, 0.1~22A, 0.1~0.55A0.5~4.4A, 0.1~22A, 0.1~0.55A0.5~4.4A, 0.1~22A, 0.1~0.55A0.5~3.85A, 0.1~1.1A, 0.1~0.5A0.5~5.5A, 0.3~3.3A, 0.1~0.77A
    Output Voltage5V, 12V, -5V5V, 12V, -12V5V, 15V, -15V5V, 24V, 12V3.3V, 5V, 12V
    Output Voltage OptionsTripleTripleTripleTripleTriple
    Dimensions101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29101.6x50.8x29
    Working Temperature-20~+65°C
    Satety StandardsUL60601-1, TUV EN60601-1, UL60950-1, EN60950-1 approved
    EMC StandardsEN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level
