Home / AC-DC Open Frame Type / RPT-75

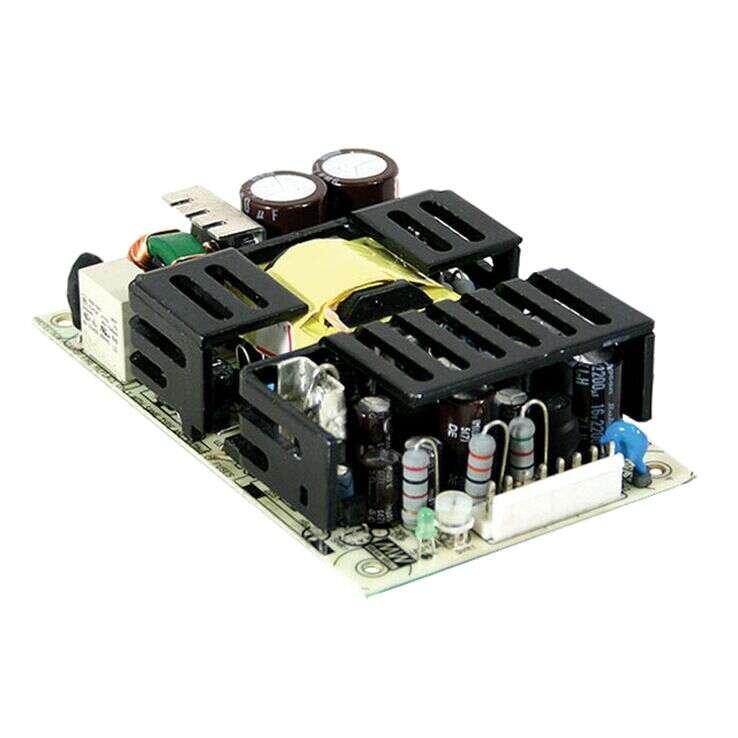

RPT-75 Series
Medical Grade Power Supplies 75W
RPT-75 Series Main Features:
Low leakage current <200uA
Protections: Short circuit / Overload / Over voltage
Models:
Manufacturer:
Type:
Other features:
RPT-75A / RPT-75B
RPT-75C / RPT-75D
RPT-7503
MEAN WELL
Open Frame Power Supplies
Fixed switching frequency at 45kHz
Universal AC Input / Full range
Medical safety approved
Fixed switching frequency at 65kHz
Free air convection with 23.5CFM forced air
Suitable for medical and IT applications
3 years warranty
Quote Request
| RPT-75A | RPT-75B | RPT-75C | RPT-75D | RPT-7503 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 75 | 75 | 75 | 75 | 75 | |||||||||||
| Input Voltage | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | 90~264VAC 127~370VDC | |||||||||||
| Output Current | 0.6~8.0, 0.2~4.0, 0.1~1.0A | 0.6~8.0, 0.2~4.0, 0.1~1.0A | 0.6~8.0, 0.1~3.0, 0.1~1.0A | 0.7~7.0, 0.0~8.0, 0.0~1.5A | 0.7~7.0, 0.0~8.0, 0.0~1.5A | |||||||||||
| Output Voltage | 5, 12, -5V | 5, 12, -12V | 5, 15, -15V | 5, 15, -15V | 3.3, 5, 12V | |||||||||||
| Output Voltage Options | Triple | Triple | Triple | Triple | Triple | |||||||||||
| DC Output Adjustment | 4.75~5.5V | 4.75~5.5V | 4.75~5.5V | 4.75~5.5V | 4.75~5.5V | |||||||||||
| Dimensions | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | 127x76.2x31 | |||||||||||
| Working Temperature | -20~+70°C | |||||||||||||||
| Satety Standards | UL60601-1, TUV EN60601-1 approved | |||||||||||||||
| EMC Standards | EN55011, EN55022 Class B, EN6100-3-2,3 EN61000-4-2,3,4,5,6,8,11, EN55024, EN60601-1-1-2, EN61204-3 Medical level | |||||||||||||||
