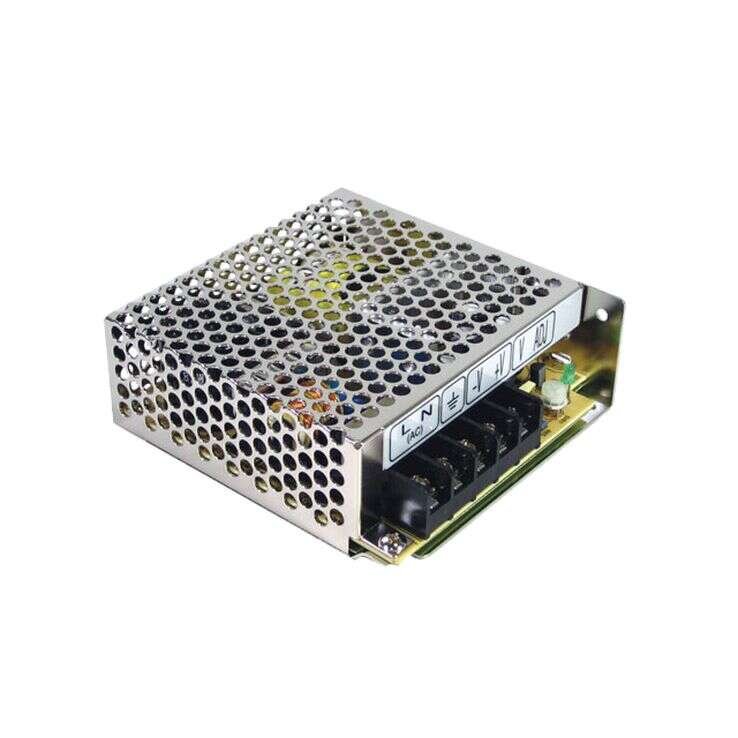

RQ-50 Series

Enclosed Power Supplies 50W

RQ-50

RQ-50 Series Main Features:

High efficiency, long life and high reliability

Protections: Short circuit / Overload/ Over voltage

Models:

Manufacturer:

Type:

Other features:

RQ-50B / RQ-50C
RQ-50D

MEAN WELL

Enclosed Power Supplies

LED indicator for power on

100% full load burn-in test

Withstand 300VAC surge input for 5 seconds

High operating temperature up to 70°C

Withstand 5G vibration test

Uses 105°C long life electrolytic capacitors

Miniature size, high power density

3 years warranty

Quote Request

    RQ-50BRQ-50CRQ-50D
    Wattage505050
    Input Voltage88-264VAC
    125-373VDC    		88-264VAC
    125-373VDC    		88-264VAC
    125-373VDC
    Output Current0~6A, 0~1.5A, 0~1A, 0~1A0~6A, 0~1.5A, 0~1A, 0~1A, 0~1A0~6A, 0~1.5A, 0~1A, 0~1A
    Output Voltage5V, 12V, -5V, -12V5V, 15V, -5V, -15V5V, 12V, 24V, -12V
    Output Voltage OptionQuadQuadQuad
    DC Output AdjustmentCH1: 4.75~5.5VCH1: 4.75~5.5VCH1: 4.75~5.5V
    Dimensions99*97*3699*97*3699*97*36
    Working Temperature-25~+70°C
    Satety StandardsUL60950-1, TUV EN60950-1 approved
    EMC StandardsEN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2
