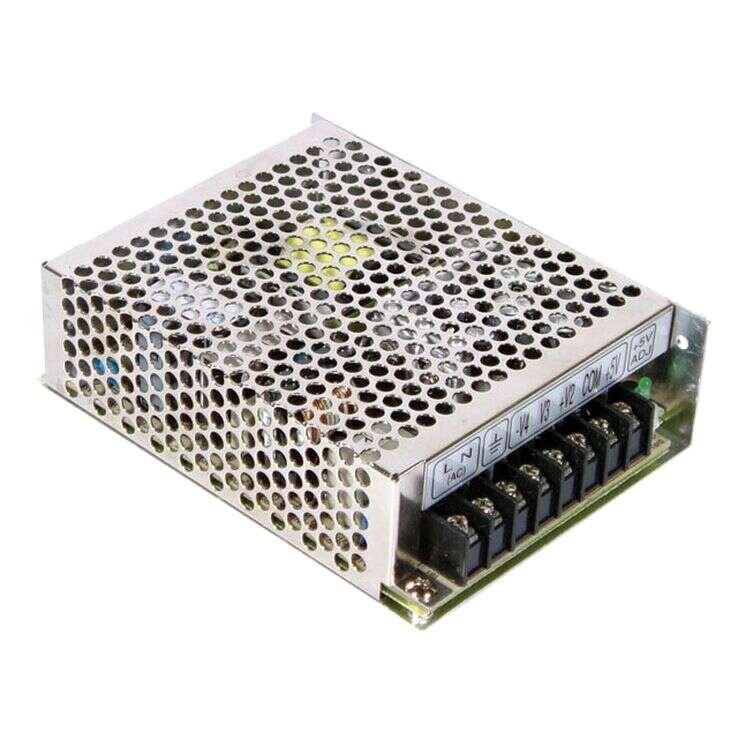

RQ-65 Series

Enclosed Power Supplies 65W

RQ-65

RQ-65 Series Main Features:

High efficiency, long life and high reliability

Protections: Short circuit / Overload/ Over voltage

Models:

Manufacturer:

Type:

Other features:

RQ-65B / RQ-65C
RQ-65D

MEAN WELL

Enclosed Power Supplies

LED indicator for power on

100% full load burn-in test

Withstand 300VAC surge input for 5 seconds

High operating temperature up to 70°C

Withstand 5G vibration test

Uses 105°C long life electrolytic capacitors

Miniature size, high power density

3 years warranty

Quote Request

    RQ-65BRQ-65CRQ-65D
    Wattage656565
    Input Voltage88-264VAC
    125-373VDC    		88-264VAC
    125-373VDC    		88-264VAC
    125-373VDC
    Output Current0~8A, 0~3A, 0~1A, 0~1A0~8A, 0~3A, 0~1A, 0~1A0~8A, 0~3A, 0~1.5A, 0~1A
    Output Voltage5V, 15V, -5V, -15V5V, 15V, -5V, -15V5V, 12V, 24V, -12V
    Output Voltage OptionQuadQuadQuad
    DC Output AdjustmentCH1: 4.75~5.5VCH1: 4.75~5.5VCH1: 4.75~5.5V
    Dimensions129*98*38129*98*38129*98*38
    Working Temperature-25~+70°C
    Satety StandardsUL62368-1, TUV BS EN/EN62368-1 , approved
    EMC StandardsCompliance to BS EN/EN61000-4-2,3,4,5,6,8,11, EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC BS EN/ TP TC 020
