Home / AC-DC Enclosed Type / RS-100

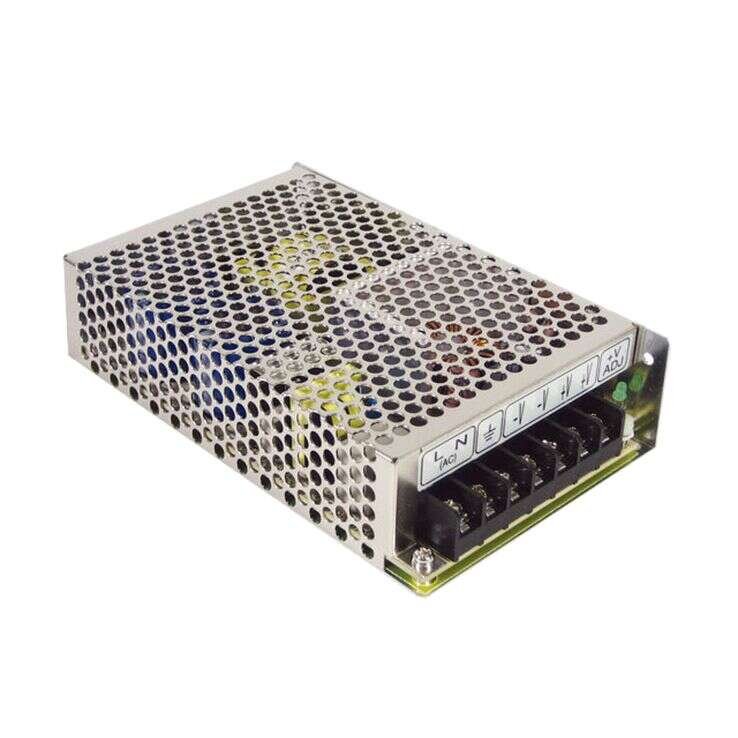

RS-100 Series
Enclosed Power Supplies 66–110W
RS-100 Series Main Features:
High efficiency, long life and high reliability
Miniature size, high power density
Protections: Short circuit/ Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RS-100-3.3 / RS-100-5
RS-100-12 / RS-100-15
RS-100-24 / RS-100-48
MEAN WELL
Enclosed Power Supplies
Meet EMS EN50082-2/EN61000-6-2
heavy industry level
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
3 years warranty
Quote Request
| RS-100-3.3 | RS-100-5 | RS-100-12 | RS-100-15 | RS-100-24 | RS-100-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 66 | 80 | 100 | 105 | 108 | 110 | ||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||
| Output Current | 0~20A | 0~16A | 0~8.5A | 0~7.0A | 0~4.5A | 0~2.3A | ||||||||||
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.2-3.5V | 4.75-5.5V | 11.4-13.2 | 14.25-16.5V | 22.8-26.4V | 45.6-52.8V | ||||||||||
| Dimensions | 159 x 97 x 38 | 159 x 97 x 38 | 159 x 97 x 38 | 159 x 97 x 38 | 159 x 97 x 38 | 159 x 97 x 38 | ||||||||||
| Working Temperature | -40-+70°C (refer to output derating curve) | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||||||||||
