Home / AC-DC Enclosed Type / RS-150

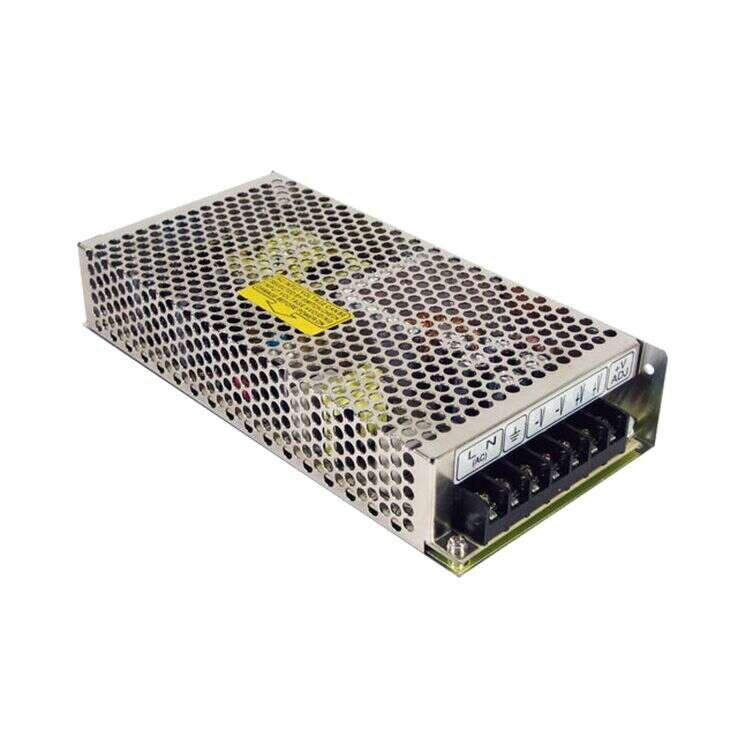

RS-150 Series
Enclosed Power Supplies 99–158W
RS-150 Series Main Features:
High efficiency, long life and high reliability
Miniature size, high power density
Protections: Short circuit / Overload/ Over voltage
Models:
Manufacturer:
Type:
Other features:
RS-150-3.3 / RS-150-5
RS-150-12 / RS-150-15
RS-150-24 / RS-150-48
MEAN WELL
Enclosed Power Supplies
Meet EMS EN50082-2/EN61000-6-2
heavy industry level
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
3 years warranty
Quote Request
| RS-150-3.3 | RS-150-5 | RS-150-12 | RS-150-15 | RS-150-24 | RS-150-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 99 | 130 | 150 | 150 | 156 | 158 | ||||||||||
| Input Voltage | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | 88-264VAC 248-373VDC | ||||||||||
| Output Current | 0~30A | 0~26A | 0~12.5A | 0~10A | 0~6.5A | 0~3.3A | ||||||||||
| Output Voltage | 3.3 | 4 | 12 | 15 | 24 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.2-3.5V | 4.75~5.5V | 11.4~13.2V | 14.25~16.5V | 22.8~26.4V | 45.6~52.8V | ||||||||||
| Dimensions | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | 199 x 98 x 38 | ||||||||||
| Working Temperature | -40~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||||||||||
