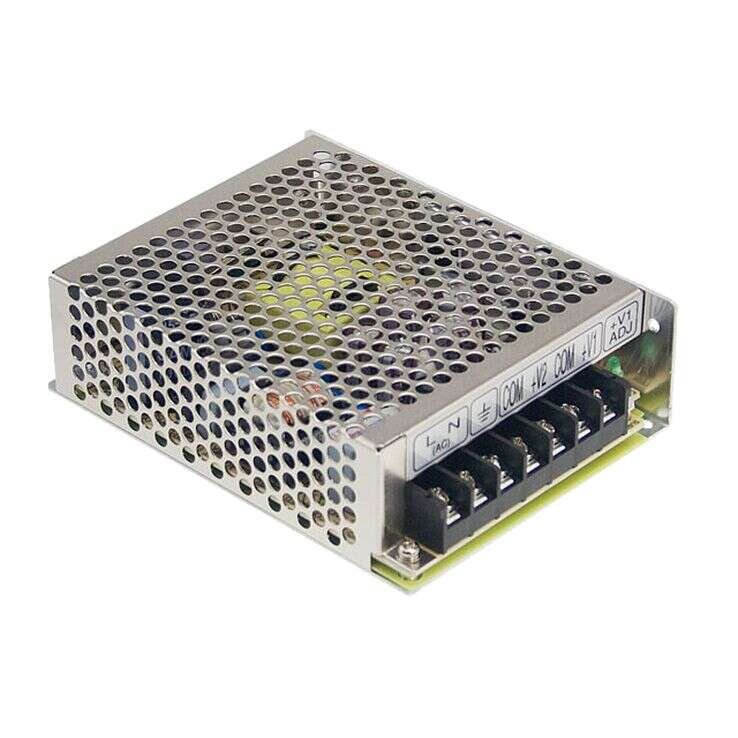

RS-50 Series
Enclosed Power Supplies 33–53W
RS-50 Series Main Features:
No Load power consumption <0.5W
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RS-50-3.3 / RS-50-5
RS-50-12 / RS-50-15
RS-50-24 / RS-50-48
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
Miniature size, high power density
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RS-50-3.3 | RS-50-5 | RS-50-12 | RS-50-15 | RS-50-24 | RS-50-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 3350 | 50 | 50 | 50 | 50 | 53 | ||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||
| Output Current | 0~10A | 0~10A | 0~4.2A | 0~3.4A | 0~2.2A | 0~1.1A | ||||||||||
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.0~3.6V | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 22~27.2V | 42~54V | ||||||||||
| Dimensions | 99 x 97 x 36 | 99 x 97 x 36 | 99 x 97 x 36 | 99 x 97 x 36 | 99 x 97 x 36 | 99 x 97 x 36 | ||||||||||
| Working Temperature | -25-+70°C (refer to output derating curve) | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||||||||||
