Home / AC-DC Enclosed Type / RS-75

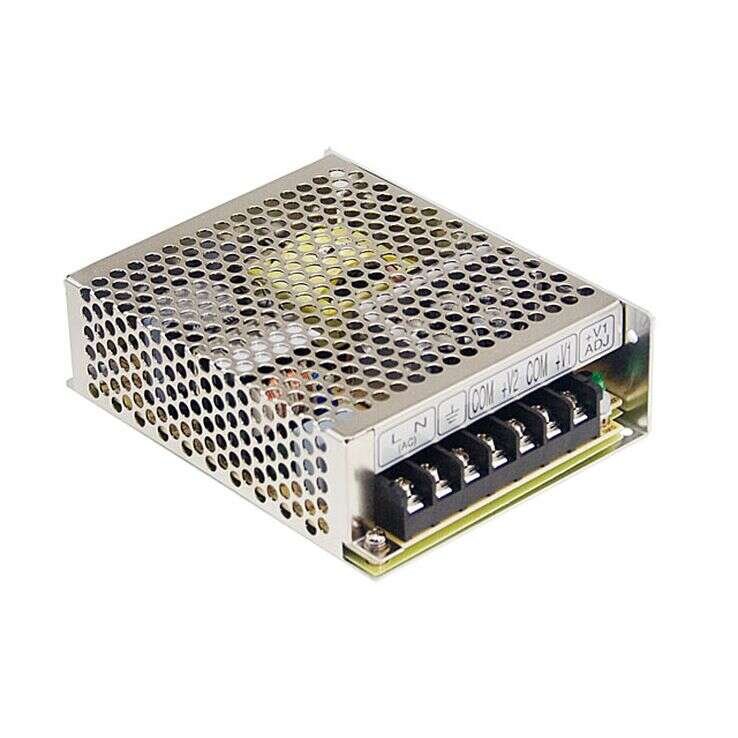

RS-75 Series
Enclosed Power Supplies 50–77W
RS-75 Series Main Features:
No Load power consumption <0.5W
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RS-75-3.3 / RS-75-5
RS-75-12 / RS-75-15
RS-75-24 / RS-75-48
MEAN WELL
Enclosed Power Supplies
LED indicator for power on
100% full load burn-in test
Withstand 300VAC surge input for 5 seconds
High operating temperature up to 70°C
Withstand 5G vibration test
Uses 105°C long life electrolytic capacitors
Miniature size, high power density
High efficiency, long life and high reliability
3 years warranty
Quote Request
| RS-75-3.3 | RS-75-5 | RS-35-12 | RS-35-15 | RS-35-24 | RS-35-48 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 23.1 | 35 | 36 | 36 | 36 | 38.4 | ||||||||||
| Input Voltage | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | 88-264VAC 125-373VDC | ||||||||||
| Output Current | 0~15A | 0~12A | 0~6.0A | 0~5.0A | 0~3.2A | 0~1.6A | ||||||||||
| Output Voltage | 3.3 | 5 | 12 | 15 | 24 | 48 | ||||||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | ||||||||||
| DC Output Adjustment | 3.0~3.6V | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 22~27.6V | 42 ~ 54V | ||||||||||
| Dimensions | 129 x 98 x 38 | 129 x 98 x 38 | 129 x 98 x 38 | 129 x 98 x 38 | 129 x 98 x 38 | 129 x 98 x 38 | ||||||||||
| Working Temperature | -30 ~ +70°C (Refer to "Derating Curve") | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2, EN50082-2 | |||||||||||||||
