Home / DC-DC Enclosed Type / RSD-100

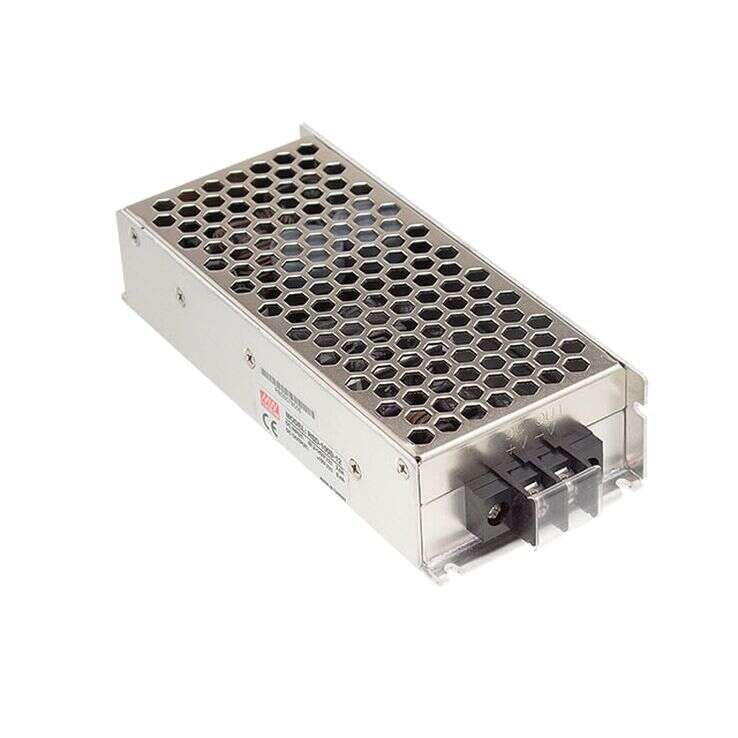

RSD-100 Series

100W Railway Single Output DC-DC Converter

RSD-100

RSD-100 Series Main Features:

Compliance to EN50155 and EN45545-2 railway standard

Cooling by free air convection

Protections: Short circuit / Overload / Over voltage / Input reverse polarity

Models:

Manufacturer:

Type:

Other features:

RSD-100B-5 / RSD-100B-12
RSD-100B-24 / RSD-100C-5
RSD-100C-12 / RSD-100C-24
RSD-100D-5 / RSD-100D-12
RSD-100D-24

MEAN WELL

Enclosed Power Supplies

1U low profile 36mm

4000VDC I/O isolation

2:1 wide input range

All using 105°C long life electrolytic capacitors

-40~+70°C wide working temperature

Built-in constant current limiting circuit

LED indicator for power on

100% full load burn in test

3 years warranty

Quote Request

    RSD-100B-5RSD-100B-12RSD-100B-24RSD-100C-5RSD-100C-12RSD-100C-24RSD-100D-5RSD-100D-12RSD-100D-24
    Wattage100100.8100.8100100.8100.8100100.8100.8
    Input Voltage16.8~31.2VDC16.8~31.2VDC16.8~31.2VDC33.6~62.4VDC33.6~62.4VDC33.6~62.4VDC67.2~143VDC67.2~143VDC67.2~143VDC
    Output Current20A8.4A4.2A20A8.4A4.2A20A8.4A4.2A
    Output Voltage5V12V24V5V12V24V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions161x68x36161x68x36161x68x36161x68x36161x68x36161x68x36161x68x36161x68x36161x68x36
    Working Temperature-40~+55°C
    Satety StandardsIEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
