Home / DC-DC Enclosed Type / RSD-150

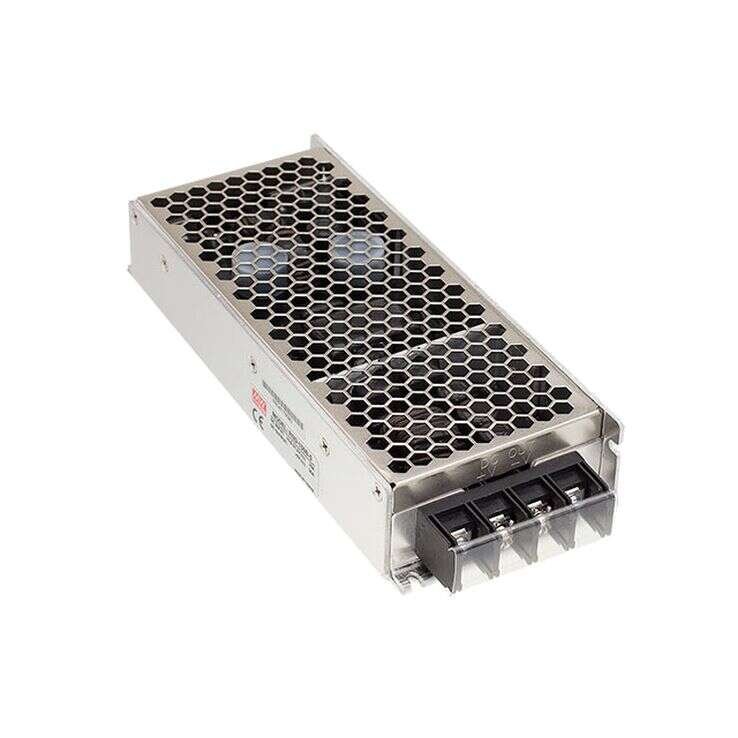

RSD-150 Series

150W Railway Single Output DC-DC Converter

RSD-150

RSD-150 Series Main Features:

Compliance to EN50155 and EN45545-2 railway standard

2:1 wide input range

Protections: Short circuit / Overload / Over voltage / Input reverse polarity

Models:

Manufacturer:

Type:

Other features:

RSD-150B-5 / RSD-150B-12
RSD-150B-24 / RSD-150C-5
RSD-150C-12 / RSD-150C-24
RSD-150D-5 / RSD-150D-12
RSD-150D-24

MEAN WELL

Enclosed Power Supplies

Cooling by free air convection

4000VDC I/O isolation

Built-in constant current limiting circuit

1U low profile 36mm

All using 105°C long life electrolytic capacitors

100% full load burn-in test

3 years warranty

Quote Request

    RSD-150B-5RSD-150B-12RSD-150B-24RSD-150C-5RSD-150C-12RSD-150C-24RSD-150D-5RSD-150D-12RSD-150D-24
    Wattage150150151.2150150151.2150150151.2
    Input Voltage16.8~31.2Vdc16.8~31.2Vdc16.8~31.2Vdc33.6~62.4Vdc33.6~62.4Vdc33.6~62.4Vdc67.2~143Vdc67.2~143Vdc67.2~143Vdc
    Output Current30A12.5A6.3A30A12.5A6.3A30A12.5A6.3A
    Output Voltage5V12V24V5V12V24V5V12V24V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions189x77x36189x77x36189x77x36189x77x36189x77x36189x77x36189x77x36189x77x36189x77x36
    Working Temperature-40~+55°C
    Satety StandardsIEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
