Home / DC-DC Enclosed Type / RSD-200

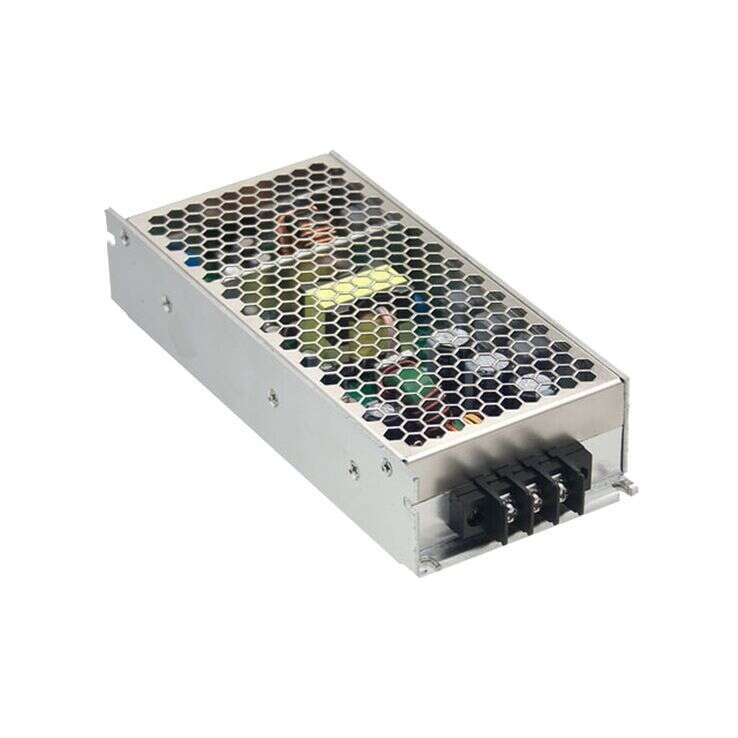

RSD-200 Series

200W Railway Single Output DC-DC Converter

RSD-200

RSD-200 Series Main Features:

Compliance to EN50155 and EN45545-2 railway standard

1U low profile 40mm

Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity

Models:

Manufacturer:

Type:

Other features:

RSD-200B-12 / RSD-200B-24
RSD-200B-48 / RSD-200C-12
RSD-200C-24 / RSD-200C-48
RSD-200D-12 / RSD-200D-24
RSD-200D-48

MEAN WELL

Enclosed Power Supplies

Cooling by free air convection

4000VDC I/O isolation

Half encapsulated

Alll using 105°C long life electrolytic capacitors

-40~+70°C wide working temperature

Built-in constant current limiting circuit

LED indicator for power on

100% full load burn-in test

3 years warranty

Quote Request

    RSD-200B-12RSD-200B-24RSD-200B-48RSD-200C-12RSD-200C-24RSD-200C-48RSD-200D-12RSD-200D-24RSD-200D-48
    Wattage200.4201.6201.6200.4201.6201.6200.4201.6201.6
    Input Voltage16.8~31.2Vdc16.8~31.2Vdc16.8~31.2Vdc33.6~62.4Vdc33.6~62.4Vdc33.6~62.4Vdc67.2~143Vdc67.2~143Vdc67.2~143Vdc
    Output Current16.7A8.4A4.2A16.7A8.4A4.2A16.7A8.4A4.2A
    Output Voltage12V24V48V12V24V48V12V24V48V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions191x86x40191x86x40191x86x40191x86x40191x86x40191x86x40191x86x40191x86x40191x86x40
    Working Temperature-40~+55°C
    Satety StandardsUL 62368-1, IEC 62368-1 AS/NZS 62368-1 EAC TP TC 004 , Design refer to BS EN/EN62368-1
    EMC StandardsCompliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020
