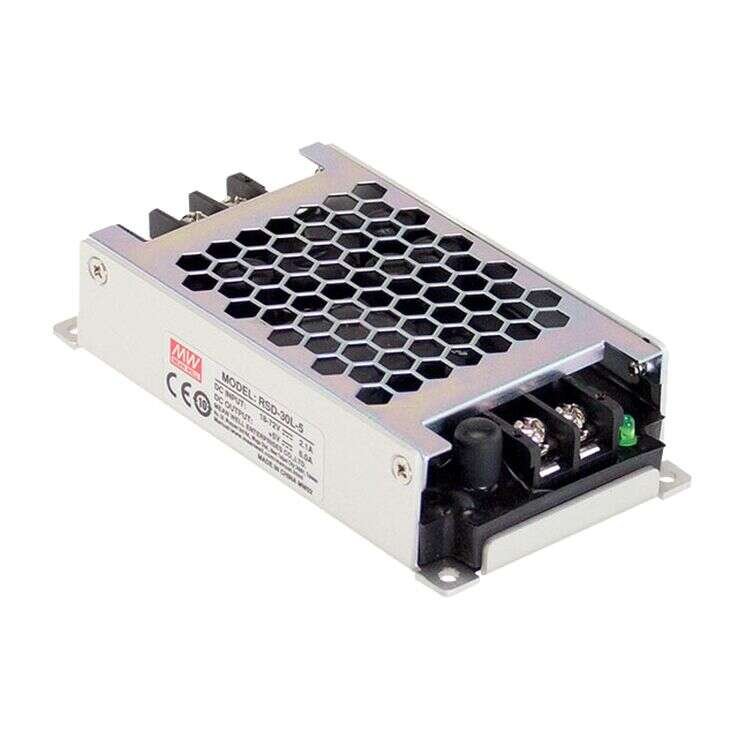

RSD-30 Series

30W Reliable Railway DC-DC Converter

RSD-30

RSD-30 Series Main Features:

Compliance to EN50155 and EN45545-2 railway standard

Ultra compact and 1U low profile (25mm)

Protections: Short circuit / Overload / Over voltage / Input reverse polarity

Models:

Manufacturer:

Type:

Other features:

RSD-30G-3.3 / RSD-30G-5
RSD-30G-12 / RSD-30G-24
RSD-30H-3.3 / RSD-30H-5
RSD-30H-12 / RSD-30H-24
RSD-30L-3.3 / RSD-30L-5
RSD-30L-12 / RSD-30L-24

MEAN WELL

Enclosed Power Supplies

No minimum load required

4000VDC I/O isolation

Half encapsulated, cooling by free air convection

-40~+70°C wide working temperature

Built-in constant current limiting circuit

LED indicator for power on

3 years warranty

Quote Request

    RSD-30G-3.3RSD-30G-5RSD-30G-12RSD-30G-24RSD-30L-3.3RSD-30L-5RSD-30L-12RSD-30L-24RSD-30H-3.3RSD-30H-5RSD-30H-12RSD-30H-24
    Wattage19.830303019.830303019.8303030
    Input Voltage9~36Vdc9~36Vdc9~36Vdc9~36Vdc18~72Vdc18~72Vdc18~72Vdc18~72Vdc40~160Vdc40~160Vdc40~160Vdc40~160Vdc
    Output Current6A6A2.5A1.25A6A6A2.5A1.25A6A6A2.5A1.25A
    Output Voltage3.3V5V12V24V3.3V5V12V24V3.3V5V12V24V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25113x60x25
    Working Temperature-40~+55°C
    Satety StandardsIEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1
    EMC StandardsBS EN/EN55032, BS EN/EN61000-3-2, BS EN/EN61000-3-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6
