Home / DC-DC Enclosed Type / RSD-300

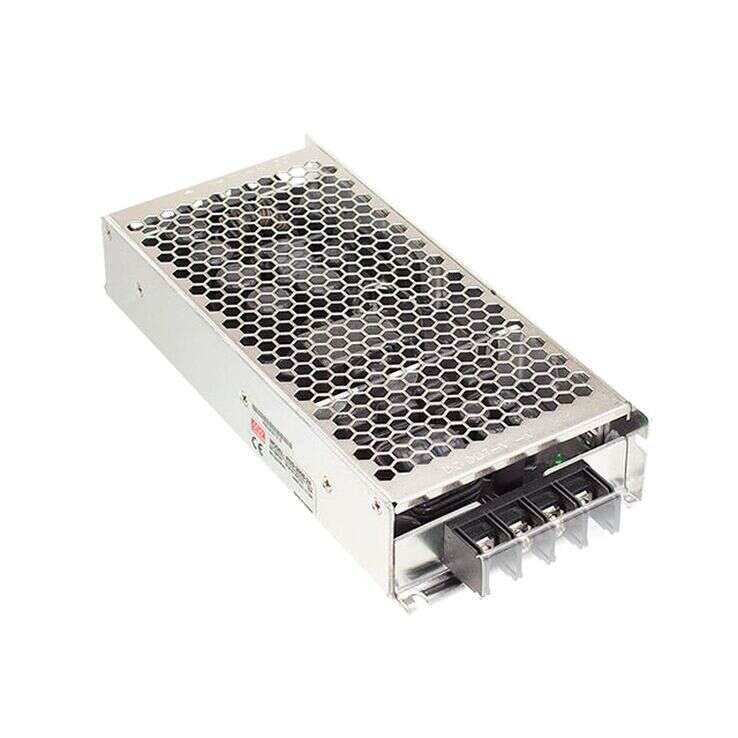

RSD-300 Series
300W Railway Single Output DC-DC Converter
RSD-300 Series Main Features:
Compliance to EN50155 and EN45545-2 railway standard
Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
Models:
Manufacturer:
Type:
Other features:
RSD-300B-5 / RSD-300B-12
RSD-300B-24 / RSD-300B-48
RSD-300C-5 / RSD-300C-12
RSD-300C-24 / RSD-300C-48
RSD-300D-5 / RSD-300D-12
RSD-300D-24 / RSD-300D-48
RSD-300F-5 / RSD-300F-12
RSD-300F-24 / RSD-300F-48
MEAN WELL
Enclosed Power Supplies
Cooling by free air convection
4000VDC I/O isolation
1U low profile 39mm
Alll using 105°C long life electrolytic capacitors
LED indicator for power on
2:1 wide input range
3 years warranty
Quote Request
| RSD-300B-5 | RSD-300B-12 | RSD-300B-24 | RSD-300B-48 | RSD-300C-5 | RSD-300C-12 | RSD-300C-24 | RSD-300C-48 | RSD-300D-5 | RSD-300D-12 | RSD-300D-24 | RSD-300D-48 | RSD-300E-5 | RSD-300E-12 | RSD-300E-24 | RSD-300E-48 | RSD-300F-5 | RSD-300F-12 | RSD-300F-24 | RSD-300F-48 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 210 | 300 | 300 | 302.4 | 210 | 300 | 300 | 302.4 | 210 | 300 | 300 | 302.4 | 210 | 300 | 300 | 302.4 | 210 | 300 | 300 | 302.4 |
| Input Voltage | 16.8~31.2VDC | 16.8~31.2VDC | 16.8~31.2VDC | 16.8~31.2VDC | 33.6~62.4VDC | 33.6~62.4VDC | 33.6~62.4VDC | 33.6~62.4VDC | 67.2~143VDC | 67.2~143VDC | 67.2~143VDC | 67.2~143VDC | 25.2~46.8VDC | 25.2~46.8VDC | 25.2~46.8VDC | 25.2~46.8VDC | 50.4~93.6VDC | 50.4~93.6VDC | 50.4~93.6VDC | 50.4~93.6VDC |
| Output Current | 42A | 22.5A | 11.3A | 5.7A | 42A | 22.5A | 11.3A | 5.7A | 42A | 22.5A | 11.3A | 5.7A | 42A | 22.5A | 11.3A | 5.7A | 42A | 22.5A | 11.3A | 5.7A |
| Output Voltage | 5V | 12V | 24V | 48V | 5V | 12V | 24V | 48V | 5V | 12V | 24V | 48V | 5V | 12V | 24V | 48V | 5V | 12V | 24V | 48V |
| Output Voltage Options | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| Dimensions | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 | 216x96.5x40 |
| Working Temperature | -40~+55°C | |||||||||||||||||||
| Satety Standards | IEC 62368-1, UL 62368-1, AS/NZS 62368-1, EAC TP TC 004 approved, Design refer to BS EN/EN62368-1 | |||||||||||||||||||
| EMC Standards | Compliance to BS EN/EN55032 (CISPR32) Conduction Emission: Class A, Radiation Emission: Class B, EAC TP TC 020 | |||||||||||||||||||
