Home / DC-DC Enclosed Type / RSD-500

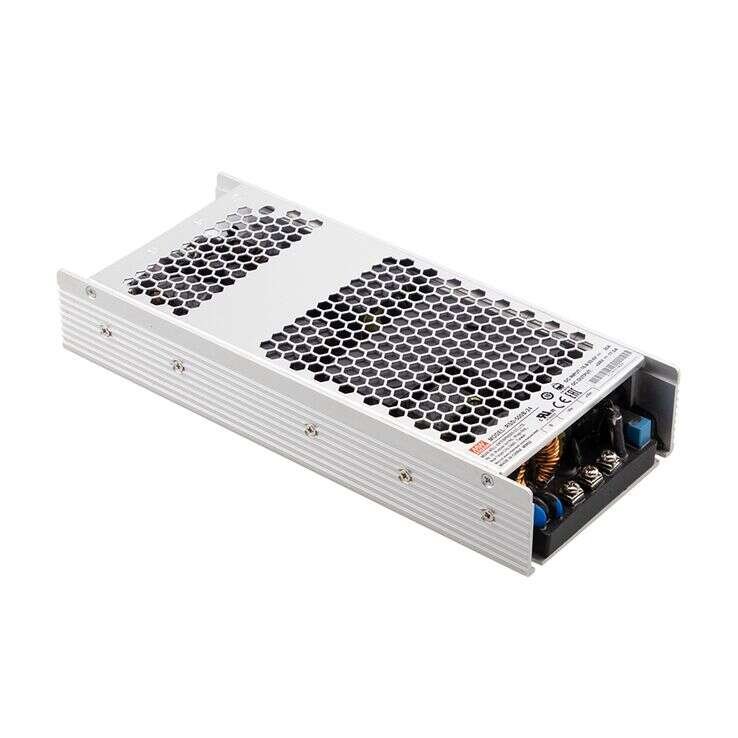

RSD-500 Series

500W Enclosed Type Reliable Railway DC-DC Converter

RSD-500

RSD-500 Series Main Features:

Compliance to EN50155 and EN45545-2 railway standard

Protections: Short Circuit / Overload / Over voltage / Over temperature / Input reverse polarity / Input under voltage protection

Models:

Manufacturer:

Type:

Other features:

RSD-500B-12 / RSD-500B-24
RSD-500B-48 / RSD-500C-12
RSD-500C-24 / RSD-500C-48
RSD-500D-12 / RSD-500D-24
RSD-500D-48

MEAN WELL

Enclosed Power Supplies

2:1 wide input range

4000VDC I/O isolation

Fanless design, half encapsulated, cooling
by free air convection

-40~+80°C wide working temperature

DC output adjustable

1U low profile 41mm

Operating additude up to 5000 meters

LED indicator for power on

3 years warranty

Quote Request

    RSD-500B-12RSD-500B-24RSD-500B-48RSD-500C-12RSD-500C-24RSD-500C-48RSD-500D-12RSD-500D-24RSD-500D-48
    Wattage19.830303019.830303019.8
    Input Voltage9~36Vdc9~36Vdc9~36Vdc9~36Vdc18~72Vdc18~72Vdc18~72Vdc18~72Vdc40~160Vdc
    Output Current6A6A2.5A1.25A6A6A2.5A1.25A6A
    Output Voltage3.3V5V12V24V3.3V5V12V24V3.3V
    Output Voltage OptionsSingleSingleSingleSingleSingleSingleSingleSingleSingle
    Dimensions237x100x41237x100x41237x100x41237x100x41237x100x41237x100x41237x100x41237x100x41237x100x41
    Working Temperature-40~+80°C
    Satety StandardsUL62368-1, IEC 62368-1, approved AS/NZS 62368-1, EAC TP TC 004 , Design refer to BS EN/EN62368-1
    EMC StandardsBS EN/EN55032 (CISRP32), BS EN/EN61000-3-3, BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8
