RSDH-150 Series

150W High Reliable 250~1500Vdc Ultra Wide Input DC-DC Converter

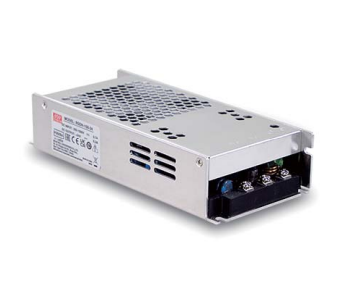

RSDH-150

RSDH-150 Series Main Features:

250~1500Vdc 6:1 ultra-wide input range

Withstand 1700Vdc surge input for 10 seconds

4KVac I/O high isolation (reinforced isolation)

Models:

Manufacturer:

Type:

Other features:

RSDH-150-12 / RSDH-150-24
RSDH-150-32 / RSDH-150-48

MEAN WELL

Enclosed Power Supplies

Protections: Short circuit/ Overload/
Over voltage/ Over temperature/ DC input
under voltage/ DC input reverse polarity

Fanless design, half encapsulated,
cooling by free air convection

-40~80°C ultra-wide operating tempera
-ture (>55°C derating)

Operating altitude up to 5000 meters

1U low profile 41mm

3 years warranty

Quote Request

    RSDH-150-12RSDH-150-24RSDH-150-32RSDH-150-48
    Wattage120150150150
    Input Voltage250~1500Vdc250~1500Vdc250~1500Vdc250~1500Vdc
    Output Current10A6.2A4.68A3.12A
    Output Voltage12V24V32V48V
    Output Voltage OptionsSingleSingleSingleSingle
    Dimensions99x97x3699x97x36
    Working Temperature-40~+80°C
    Satety StandardsUL1741, CSA C22.2 No.107.1-16 , IEC62109-1 BS EN/EN62109-1 EAC TP TC 004 approved
    EMC StandardsBS EN/EN55032(CISPR32), BS EN/EN61000-4-2, BS EN/EN61000-4-3, BS EN/EN61000-4-4, BS EN/EN61000-4-5, BS EN/EN61000-4-6, BS EN/EN61000-4-8
