Home / AC-DC Enclosed Type / RSP-100

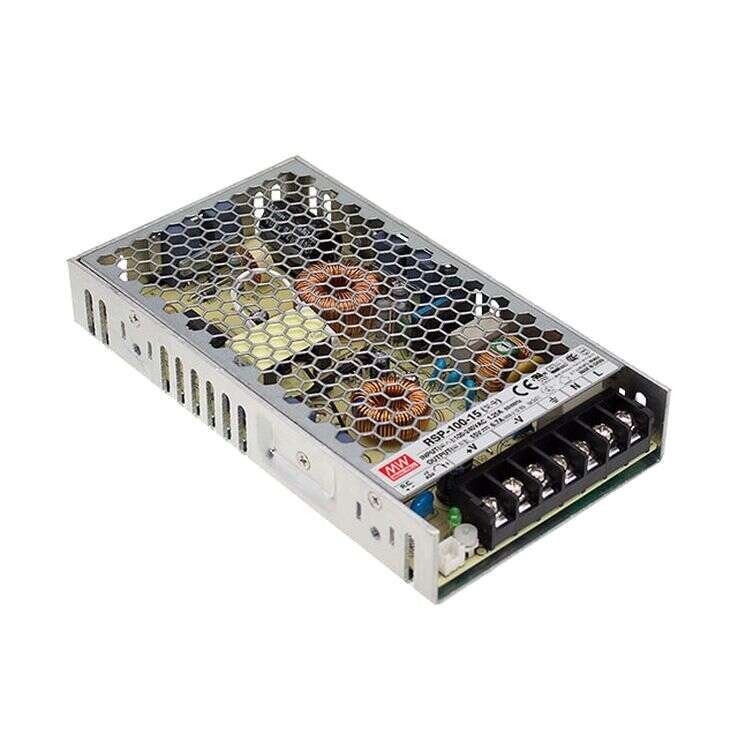

RSP-100 Series
Enclosed Power Supplies 66–103W
RSP-100 Series Main Features:
Universal AC input / Full range
Built-in active PFC function, PF>0.95
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RSP-100-3.3 / RSP-100-5
RSP-100-7.5 / RSP-100-12
RSP-100-13.5 / RSP-100-15
RSP-100-24 / RSP-100-27
RSP-100-48
MEAN WELL
Enclosed Power Supplies
Cooling by free air convection
Built-in constant current limiting circuit
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
1U low profile 30mm
3 years warranty
Quote Request
| RSP-100-3.3 | RSP-100-5 | RSP-100-7.5 | RSP-100-12 | RSP-100-13.5 | RSP-100-15 | RSP-100-24 | RSP-100-27 | RSP-100-48 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 66 | 100 | 101 | 102 | 101 | 101 | 101 | 103 | 101 | |||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | |||||||
| Output Current | 0~20A | 0~20A | 0~13.5A | 0~8.5A | 0~7.5A | 0~6.7A | 0~4.2A | 0~3.8A | 0~2.1A | |||||||
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 13.5 | 15 | 24 | 27 | 48 | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 3.14~3.63V | 4.75~5.5V | 7.13~8.25V | 11.4~13.2V | 12.8~14.9V | 14.3~16.5V | 22.8~26.4V | 25.7~29.7V | 45.6~52.8V | |||||||
| Dimensions | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | 179x 99x 30 | |||||||
| Working Temperature | -25~+70°C (refer to output derating curve) | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1 | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||||||||||||
