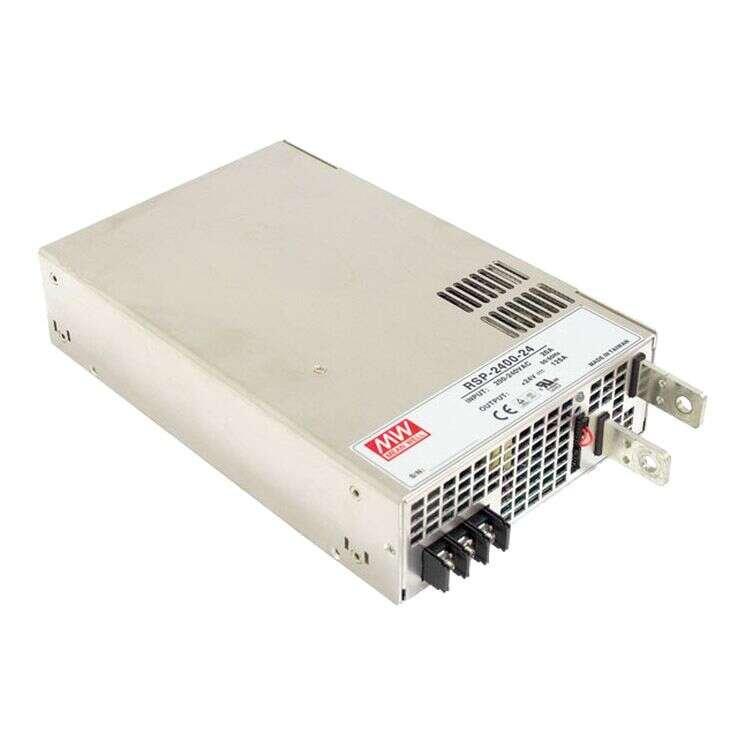

RSP-2400 Series
Enclosed Power Supplies 2000–2400W
RSP-2400 Series Main Features:
Built-in active PFC function, PF >0.95
Protections: Short circuit/ Overload/ Over voltage/ Over Temp./ Fan alarm
Models:
Manufacturer:
Type:
Other features:
RSP-2400-12 / RSP-2400-24
RSP-2400-48
MEAN WELL
Programmable Power Supplies
High power density 12.5W/in³
Built-in 12V/0.1A auxiliary output
Alarm signal output (TTL signal &
relay contact)
Output voltage can be trimmed be
-tween 20~110% of the rated output voltage
Current sharing up to 3 units
Remote ON/OFF control & remote sense
Forced air cooling by built-in DC fan
3 years warranty
Quote Request
[wpforms id="1665" title="false"]
| RSP-2400-12 | RSP-2400-24 | RSP-2400-48 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 2000 | 2400 | 2400 | |||||||||||||
| Input Voltage | 180~264VAC 254~370VDC | 180~264VAC 254~370VDC | 180~264VAC 254~370VDC | |||||||||||||
| Output Current | 0~166.7A | 0~100A | 0~50A | |||||||||||||
| Output Voltage | 12V | 24V | 48V | |||||||||||||
| Output Voltage Options | Single | Single | Single | |||||||||||||
| DC Output Adjustment | 10.8~13.2V | 22~28V | 43~56V | |||||||||||||
| Dimensions | 278x177.8x63.5 | 278x177.8x63.5 | 278x177.8x63.5 | |||||||||||||
| Working Temperature | -30~+70°C | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1 approved | |||||||||||||||
| EMC Standards | EN55022 class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11 | |||||||||||||||
