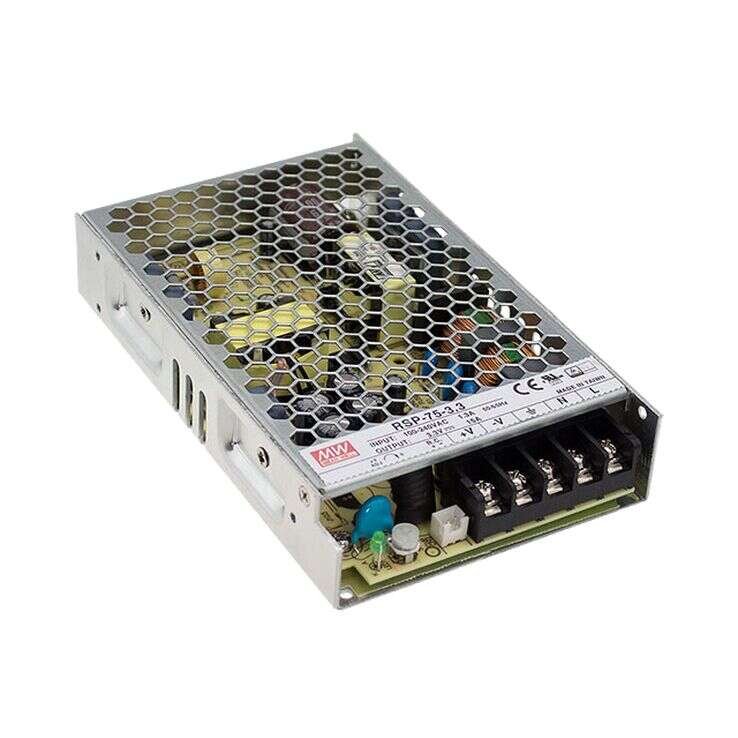

RSP-75 Series
Enclosed Power Supplies 50–77W
RSP-75 Series Main Features:
1U low profile 30mm
Built-in active PFC function
Protections: Short circuit / Overload/ Over voltage/ Over Temperature
Models:
Manufacturer:
Type:
Other features:
RSP-75-3.3 / RSP-75-5
RSP-75-7.5 / RSP-75-12
RSP-75-13.5 / RSP-75-15
RSP-75-24 / RSP-75-27
RSP-75-48
MEAN WELL
Enclosed Power Supplies
Universal AC input / Full range
Built-in constant current limiting circuit
Remote ON-OFF control
LED indicator for power on
100% full load burn-in test
Cooling by free air convection
3 years warranty
Quote Request
| RSP-75-3.3 | RSP-75-5 | RSP-75-7.5 | RSP-75-12 | RSP-75-13.5 | RSP-75-15 | RSP-75-24 | RSP-75-27 | RSP-75-48 | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wattage | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 77 | |||||||
| Input Voltage | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | 85-264VAC 120-370VDC | |||||||
| Output Current | 0~15A | 0~15A | 0~10A | 0~6.3A | 0~5.6A | 0~5.0A | 0~3.2A | 0~2.8A | 0~1.6A | |||||||
| Output Voltage | 3.3 | 5 | 7.5 | 12 | 13.5 | 15 | 24 | 27 | 48 | |||||||
| Output Voltage Option | Single | Single | Single | Single | Single | Single | Single | Single | Single | |||||||
| DC Output Adjustment | 3.14~3.63V | 4.75~5.5V | 7.13~8.25V | 11.4~13.2V | 12.8~14.9V | 14.3~16.5V | 22.8~26.4V | 25.7~29.7V | 45.6~52.8V | |||||||
| Dimensions | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | 159x 97x 30 | |||||||
| Working Temperature | -10~+60°C (Refer to "Derating Curve") | |||||||||||||||
| Satety Standards | UL60950-1, TUV EN60950-1, CCC GB4943 approved; Design refer to EN60335-1 | |||||||||||||||
| EMC Standards | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3, GB9254 class B, EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A | |||||||||||||||
